Know More About Triplett AC Voltage Detector

What is an Electrical Tester?

An electrical tester is a handheld tool used to determine the presence or absence of electrical voltage and/or current in an electrical circuit or device quickly and easily. There are different types of electrical testers available, but the most common type is a non-contact voltage tester. Electrical testers can detect AC only, DC only, or both AC and DC signals. Some electrical testers also have additional features, such as the ability to measure voltage levels, continuity testing, or resistance measurements.

What is an AC Voltage Detector?

An AC voltage detector, also known as an AC voltage tester or AC voltage pen, is a specific type of electrical tester used to detect the presence of alternating current (AC) voltage in electrical systems.

What is Contact and Non-Contact Voltage Testers?

Voltage testers come in two types: contact and non-contact. The primary distinction between them lies in how they make contact with the electrical source being tested.

Contact voltage testers, also referred to as probe testers or voltage detectors, necessitate direct physical contact with the electrical source being tested. These testers generally comprise a handheld device equipped with a probe or leads that are either touched or inserted into the circuit. Upon making contact with an energized conductor or component, the probe detects the voltage and signals its presence.

Non-contact voltage testers, also known as voltage detectors or proximity testers, do not require direct physical contact with the electrical source. They utilize technologies such as capacitive, inductive, or magnetic field sensing to detect the electric field generated by an energized source.

What is AC and DC Electrical Testers?

The most common testers measure AC signals. AC (alternating current) is the power that is provided by utility companies to homes, offices, and manufacturing plants. AC signals are present at breaker panels, wall outlets, switches, light fixtures, etc. DC testers (direct current) are geared toward the measurement of low voltage signals associated with battery powered circuits.

Built-in IR Thermometer with LCD displays non-contact temperature measurements!

Electrical Testers detect the presence of voltage or current at an outlet, power strip, light fixture, wall switch, or any location where electricity may be present. The user places the tester near (in the case of a non-contact tester) or in touch with (in the case of a contact tester) an electrical circuit. The tester may provide the measurement results audibly, visually, or by both means. Audible detection is usually by way of chirping tones that grow louder and more insistent as the electricity amount increases. Visual alerts can be simple LED lights or full digital readouts with bar graphs.

How to Use an AC Voltage Detector?

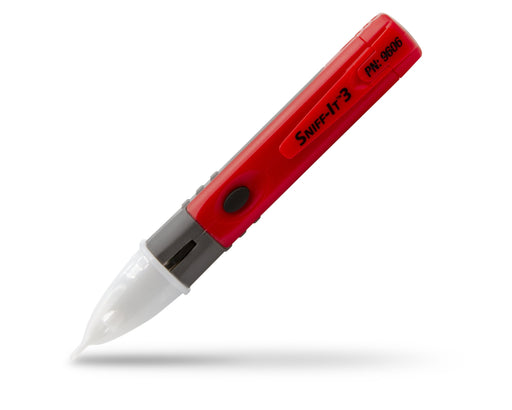

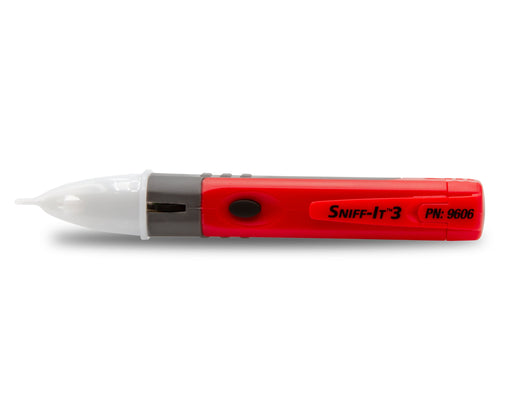

Triplett’s much handy, easy-to-use, and accurate non-contact AC voltage detector is a simple, pen-like device. This device can detect a wide range of voltage including low values found in thermostats, control systems, and more. It comes with audiovisual alarms and flashlights. This AC voltage detector detects voltage before circuit is functional and the mains is switched off. The tester need not touch any wires when using this AC non-contact voltage tester. This commercial electric voltage tester is one such device every electrician or related professional must have in their kit. Here are some pointers regarding its usage.

• First, identify the circuit for voltage detection and ensure the mains is off. The circuit you need to check must be on.
• This AC voltage detector is insulated and even then it issues an alert when it come close to any live wire. This depends on the type and size of the electric field. For instance, any non-contact AC voltage detector will identify this field from a distance if the wire is freely hanging. On the other hand, it may need to get close to the wire if it is grounded or against a wall, and so on. This is because the surrounding earth will shield the electric field created. The electric field is denser near the conducting element; it reduces in the space away from the conductor.
• All you need to do is simply insert the tip of the tester into the right plug. You can also check the receptacle wiring for wrong wire connections. If there is voltage produced, the ester will light up.
• You can unscrew the receptacle and directly check the wires to ensure they do not have current flowing.
• Likewise, you can check power switches, lighting fixtures, and so on by unscrewing the light, cover plate, and so on. After unscrewing, you can simply put the tester tip onto the central button.

Applications of AC Voltage Detectors

AC voltage detectors play a crucial role in enhancing safety and efficiency across a wide range of settings. These devices are versatile tools that help users identify the presence of live electrical currents without making direct contact. Here are some key applications of AC voltage detectors:

• Electrical Maintenance and Troubleshooting: AC voltage detectors are commonly used by electricians and maintenance technicians to quickly locate live wires and circuits in electrical panels, junction boxes, and wiring systems. They aid in identifying faulty wiring, short circuits, and potential hazards.
• Residential Electrical Work: Homeowners and DIY enthusiasts use AC voltage detectors to ensure safety when working on home electrical projects. These detectors help in identifying live wires, verifying circuit breakers, and confirming the absence of voltage before starting repairs or installations.
• Commercial and Industrial Environments: AC voltage detectors are essential tools in commercial and industrial settings, such as factories, warehouses, and construction sites. They assist workers in identifying live circuits, testing outlets, and verifying the status of electrical equipment.
• HVAC System Maintenance: HVAC technicians use AC voltage detectors to identify live wires within heating, ventilation, and air conditioning systems. This helps in diagnosing electrical issues and ensuring safe maintenance and repairs.
• Appliance Troubleshooting: When appliances malfunction, AC voltage detectors aid in determining whether power is reaching the device. This helps users identify if the issue is due to an electrical problem or a malfunction within the appliance itself.
• Automotive Maintenance: AC voltage detectors are useful in the automotive field for diagnosing electrical issues in vehicles. Technicians can quickly identify live circuits, helping them pinpoint problems related to lighting, wiring, and electrical components.
• Testing GFCI Outlets: Ground Fault Circuit Interrupter (GFCI) outlets are designed to protect against electrical shock. AC voltage detectors are used to verify the proper functioning of GFCI outlets and to ensure they are working as intended.
• Safety Checks in Construction: Construction workers use AC voltage detectors to ensure that construction sites are safe before starting work. Detecting live wires and circuits helps prevent accidents and hazards during building and renovation projects.
• Data Centers and Network Installations: AC voltage detectors are employed in data centers and network installations to check for live circuits before handling networking equipment and power distribution units. This prevents potential disruptions and equipment damage.
