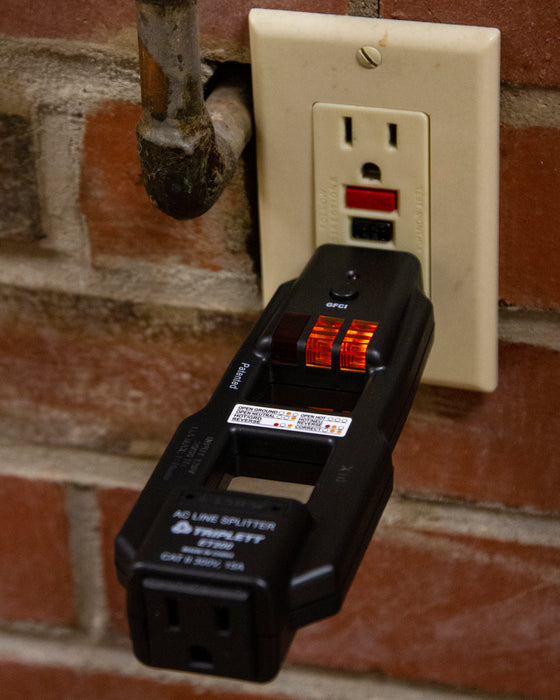

Commercial and Residential Combination AC Line Splitter and GFCI Receptacle Tester: Tests 3-Wire Receptacles - (ET200)

Best Seller
by Triplett
SKU ET200
614395001964
$21.99 - $21.99
$21.99
$21.99 - $21.99
$21.99

Extended Lead Time: Up to 11 business days for NIST Calibration

Product Information

Combines a GFCI Tester and AC Line Splitter in one tool so that you can check outlet wiring, measure voltage, and use your clamp meter to measure current up to 15A. When measuring current you can without breaking the circuit. Clamp around the X1 position for a direct current reading or use the X10 position to display low current readings multiplied by 10. You can also detect faulty wiring in 3-wire receptacles. The lights display 5 wiring faults: Open Ground, Open Neutral, Hot/Ground Reverse, Open Hot, Hot/Neutral Reverse. There is an easy to read fault label on both sides for receptacles with ground up or ground down installation. At the push of a button, you can test GFCI for proper operation. Two very useful and necessary tool for residential and commercial electricians, home inspectors, and DIYers. This product is cETLus listed.



CATEGORY: GFCI RECEPTACLE TESTERS

  • Combines a GFCI Tester and AC Line Voltage Splitter in one tool
  • Check outlet wiring, measure voltage, and use your clamp meter to measure current up to 15A without breaking the circuit
  • Lights display 5 wiring faults: Open Ground, Open Neutral, Hot/Ground Reverse, Open Hot, Hot/Neutral Reverse
  • Test GFCI for proper operation

Triplett Solutions for Every Contractor

ac line splitter clamp meter accessory

easy to use outlet tester

gfci receptable outlet power tester

Current Measurement Rings

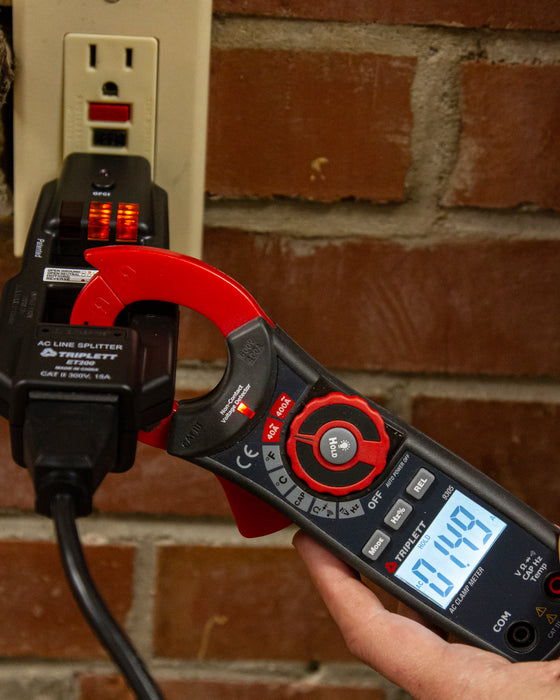

When connected between the 120V AC wall outlet and the device under test, a clamp meter can be clamped around one of the two test openings in the ET200. One opening provides a one-to-one current reading; the other provides a times-ten (x10) reading so that small current will display with better resolution on your clamp meter.

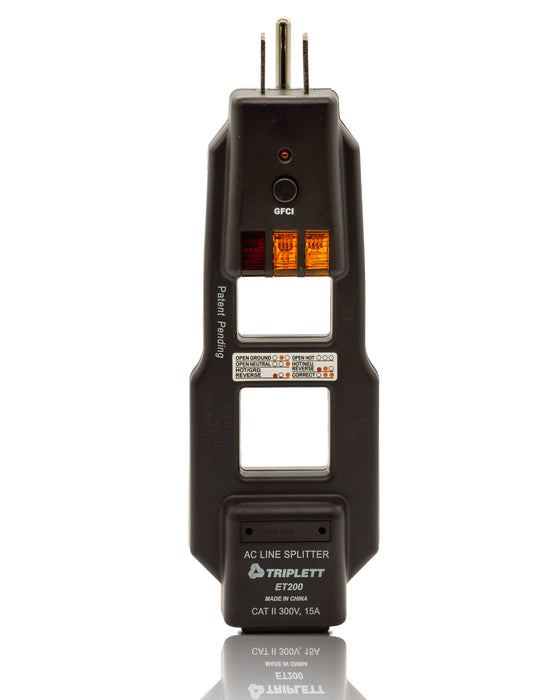

Easy-to-Read, Dual-Side Fault Charts

Easy-to-read fault label each side, designed for receptacles with ground up or ground down installation. Lights display 5 wiring faults: Open Ground, Open Neutral, Hot/Ground Reverse, Open Hot, Hot/Neutral Reverse.

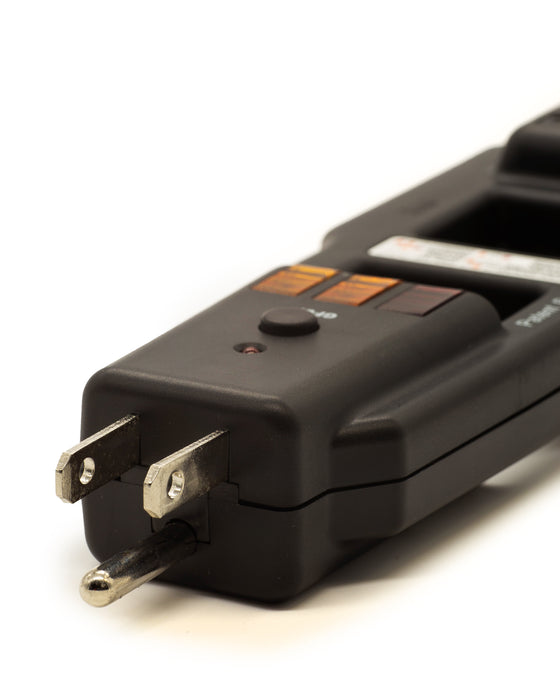

Simple Push-Button Outlet Tester

For use on 110-125 VAC receptacles. Test GFCI receptacles for proper operation and detect faulty wiring in 3-wire receptacles.
tripett et200 ac outlet power tester diy and new construction

Applications

Combines two useful and necessary tools for residential and commercial electricians, home inspectors, kitchen and bath installers, apartment/condo property managers, DIY'ers and handymen.

9610 Plug-Bug

9610 Plug-Bug ET100 ET200
Applications Test wall outlets for proper wiring and identify live outlets Test wall outlets for proper wiring and identify live outlets Test wall outlets for proper wiring and identify live outlets. Measure voltage, and use your clamp meter to measure current
Input Voltage    120V ± 10% Maximum
Current 15A
Safety Category CAT II 300
Datasheet
User Manual (PDF)
An AC Line Splitter is a device used to measure the current flowing through an electrical appliance or device that is plugged into a standard AC power outlet. It allows you to safely and accurately measure the electrical current without the need to cut or disconnect the power cord.
The AC Line Splitter typically has two or more prongs that fit into the power outlet. It divides the current between the appliance or device and a built-in current measurement circuit. This enables you to attach a clamp meter or current meter to the splitter to measure the current without interrupting the power supply.
A GFCI Outlet Splitter is a device that allows you to convert a single Ground Fault Circuit Interrupter (GFCI) outlet into multiple outlets. It provides additional outlets with GFCI protection, ensuring safety from electrical shocks and ground faults.
The GFCI Outlet Splitter plugs into the existing GFCI outlet, and it offers two or more additional outlets, all with GFCI protection. It allows you to power multiple devices while maintaining the GFCI safety feature for each connected device.
A 15 Amp AC Line Splitter is a type of AC line splitter that is designed to handle electrical appliances or devices that draw up to 15 amps of current. It allows you to measure the current of higher-powered equipment safely.
Yes, you can use a 15 Amp AC Line Splitter for appliances drawing less than 15 amps. The splitter can handle lower currents as well, making it versatile for measuring a wide range of electrical devices.
Yes, the 15 Amp AC Line Splitter is commonly used in residential settings to measure the current of various household appliances, tools, and equipment.
