Voltage and Current Tester with Phase Rotation Tester (VCT1000)

Voltage and Current Tester with Phase Rotation Tester (VCT1000)

by Triplett Test Equipment & Tools
SKU vct1000
614395004620
$99.99 - $99.99
$99.99
$99.99 - $99.99
$99.99

Extended Lead Time: Up to 11 business days for NIST Calibration

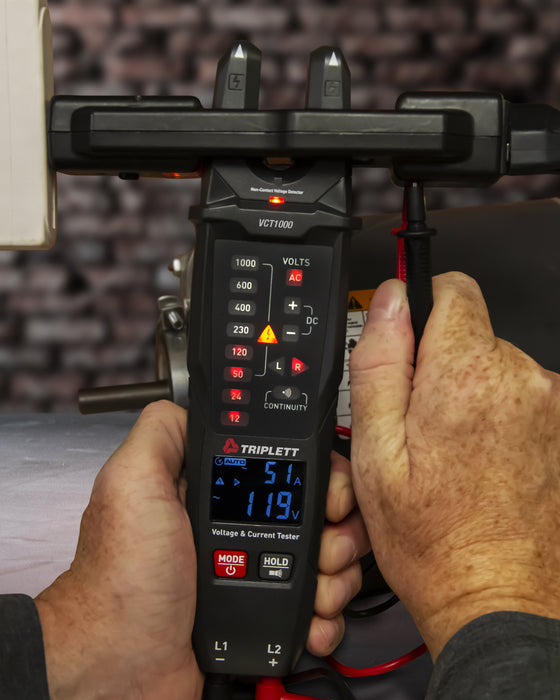

The Triplett Model VCT1000  Voltage and Current Tester can measure AC current up to 200A without breaking the circuit and fits into tight spaces where a standard clamp meter jaw is unable to close. Read More >


DESCRIPTION

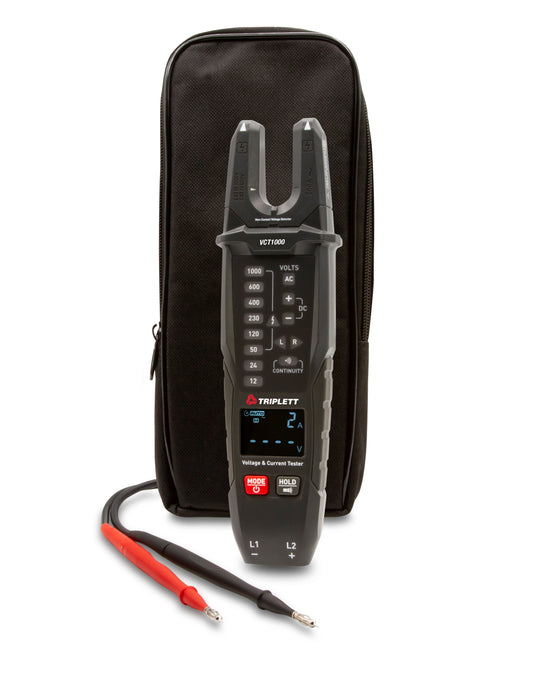

The Triplett Model VCT1000  Voltage and Current Tester can measure AC current up to 200A without breaking the circuit and fits into tight spaces where a standard clamp meter jaw is unable to close. This saves time and the circuit will not be damaged. Additional measurements include AC/DC Voltage, Resistance, and Continuity. Measurements can read on the 2000 count, EBTN (Enhanced Black Twisted Nematic) display for easy viewing in any lighting condition. Features include: LED AC/DC Voltage indicators with polarity, a Rotary Field Indicator that checks for correct 3-phase wire sequence (L1, L2, L3) and rotation direction (R, L), a built-in NCV Detector with LED, and low battery indicator. Data Hold freezes the display for easy viewing.  CAT IV-600V safety category. Includes 2 AA batteries, test leads and pouch case. 1-year warranty.

CATEGORY: CLAMP METER

Features
  • Features a built-in Non-Contact Voltage Tester and Phase Rotation Tester
  • 2000 count EBTN (Enhanced Black Twisted Nematic) display for easy viewing in any lighting condition
  • 200A AC open jaw design fits into tight spaces where a standard clamp can't close
  • LED AC/DC Voltage Indicators: 12, 24, 50, 120, 230, 400, 690, 1000V
  • DC Polarity LEDs
  • Rotary Field Indicator checks for correct 3-phase wire sequence (L1, L2, L3) and rotation direction (R, L)
  • Built-in Non-Contact Voltage Detector with LED
  • Continuity Test with audible and visual indicators
  • Data Hold freezes the display
  • CAT IV-600V
  • Data Hold freezes the display
  • Includes Test Leads, 2 AA batteries and pouch case.
    • Specifications
      VCT1000
    Display EBTN (2000 count)
    AC/DC Voltage Range 6 to 1000V
    Accuracy ±3%
    Resolution 1V
    LED Voltage Indicators 12, 24, 50, 120, 230,
    400, 690, 1000V AC/DC
    AC Bandwidth 40 to 400Hz
    AC Current 200A
    ACA Accuracy ±3.5%
    AC Bandwidth 45 to 65Hz
    Resistance 0 to 1999Ω
    Continuity 0 to 400kΩ
    Rotary Field Indication Phase Sequence and Direction
    Bandwidth 50/60Hz
    NCV Detector 100 to 1000V
    Power (2) AA batteries
    Safety Category CAT IV-600V
    Dimensions 9.1 x 2.5 x 1.7" (230 x 64 x 43mm)
    Weight 12oz (340.2g)
