Triplett Single Input Type K/J Thermometer TMP50

Single Input Type K/J Thermometer - Dual backlit display with °C, °F or °K temperature readout - (TMP50)

by Triplett
SKU TMP50
614395002534
$109.99 - $197.99
$109.99
$109.99 - $197.99
$109.99
Version: Standard

Extended Lead Time: Up to 11 business days for NIST Calibration

Product Information

The Triplett Model TMP50 Single Input Type K (-328 to 2501°F/-200 to 1372°C) /Type J (-346 to 2012°F/-210 to 1100°C) Thermometer has a dual backlit display with °C, °F or °K temperature readout. It can be used to measure the surface temperature of solid objects as well as in liquids and ambient (air) temperature. It features an adjustable offset for probe compensation, Min/Max/Average with elapsed time reference, Data Hold function that freezes readings on the display for easy viewing, and a programmable auto power off with disable to conserve battery life. Includes 3 AAA batteries and Type K Thermocouple bead probe. 1-year warranty.

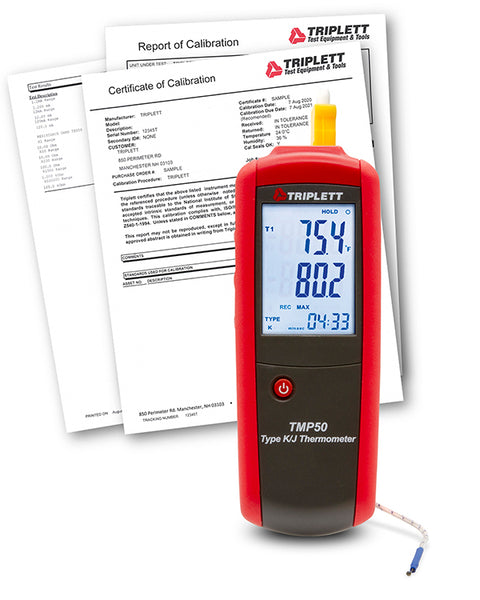

TMP50-NIST Comes with Certificate of traceability to NIST Standards
Please add 11 business days lead-time for the NIST calibration process



CATEGORY: DIGITAL THERMOMETERS

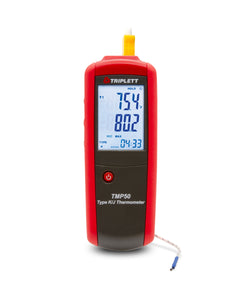

  • Dual backlit display with °C, °F or °K temperature readout
  • Adjustable offset for probe compensation
  • Min/Max/Average with elapsed time reference
  • Data Hold freezes readings on the display
  • Programmable auto power off with disable

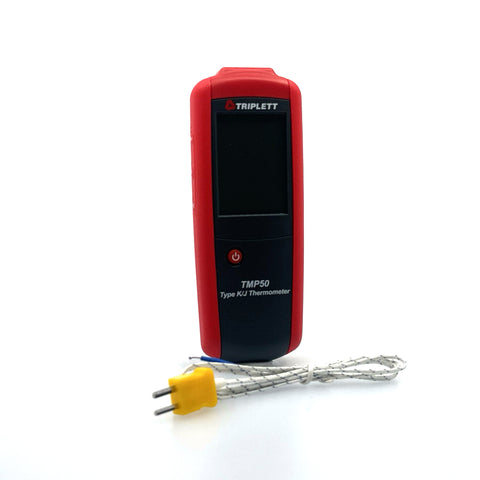

  • Includes: 3 AAA batteries and Type K Thermocouple bead probe
  TMP50
Type K Temperature Range -328 to 2501°F (-200 to 1372°C)
Type J Temperature Range -346 to 2012°F (-210 to 1100°C)
Accuracy ±(0.15% + 1.8°F/1°C) above -148°F (-100°C)
'±(0.5% + 3.6°F/2°C) below -148°F (-100°C)
Resolution 0.1°F/°C
Power (3) AAA batteries
Dimensions 8.7 x 2.5 x 1.1” (220 x 63 x 28mm)
Weight 7oz (200g)
Datasheet
User Manual (PDF)
A K/J Thermometer is a handheld temperature measuring device capable of using K-type and J-type thermocouples for temperature measurements. These thermometers offer versatility by accommodating different thermocouple types for various temperature measurement needs.
To use a K/J thermometer, connect the thermocouple wires to the thermometer and insert the probe into the area you want to measure. The thermometer will display the temperature.
The TMP50 Single Input Type K/J Thermometer from Triplett is a handheld temperature measuring device designed for both K-type and J-type thermocouples. Users can easily switch between thermocouple types for accurate temperature measurements in various applications.
Switching between K-type and J-type thermocouples on the TMP50 Thermometer is simple. Insert the desired thermocouple into the input jack, and the thermometer will automatically detect and display the temperature using the selected thermocouple type.
Yes, the TMP50 Thermometer is suitable for both professional and personal use. It is commonly utilized by HVAC technicians, engineers, laboratory technicians, and other professionals who require accurate temperature measurements across various applications.
