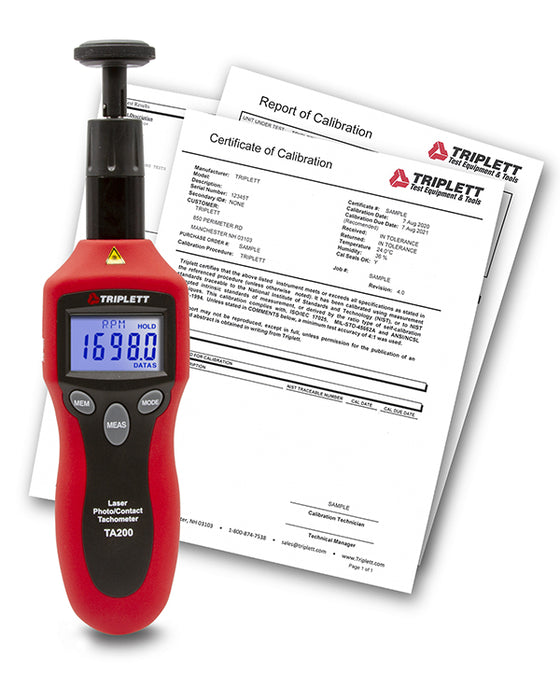

Contact and Laser Photo Tachometer: Fast and Accurate Contact and Non-contact RPM of Rotating Objects and Counts (REV) Measurements - (TA200)
The Triplett TA200 Tachometer provides fast and accurate contact and non-contact Rotational Speed (RPM), Frequency (Hz), Linear Surface Speed (meters per minute, inches per minute, feet per minute, yards per minute), Length (meters, inches, feet, and yards), and Total Revolutions (REV). Read More >
DESCRIPTION
The Triplett TA200 Tachometer provides fast and accurate contact and non-contact Rotational Speed (RPM), Frequency (Hz), Linear Surface Speed (meters per minute, inches per minute, feet per minute, yards per minute), Length (meters, inches, feet, and yards), and Total Revolutions (REV). Features include: wide measurement range with high resolution, laser guided non-contact measurement with 8.2ft (2500mm) maximum target distance, and a backlit 5-digit LCD display. Memory stores last 10 readings for Min/Max/AVG/Data. Includes 2 contact tips/1 wheel, 23” (58.4cm) reflective tape, 9V battery, and carrying case. 1-year warranty.
TA200-NIST Comes with Certificate of traceability to NIST standards
Please add 11 business days lead-time for the NIST calibration process
CATEGORY: CONTACT & LASER TACHOMETERS
Features
- Fast and accurate non-contact RPM measurement of rotating objects
- Wide measurement range and high resolution
- Backlit 5-digit LCD display
- Overmolded housing for added durability
- Optional models complete with Certificate of Traceability to N.I.S.T.
- Contact RPM of rotating objects and linear
- surface speed measurement
- Laser guided non-contact measurement with 8.2ft (2500mm) maximum target distance
- Memory stores last 10 readings for Min/Max/AVG/Data
- Complete with 2 contact tips/1 wheel, 23” (58.4cm)
- 1-year warranty
Specifications
TA200 | |
Non-Contact Measurement | |
RPM Range | 2 to 200,000RPM |
Frequency Range | 0 to 3333.3Hz |
Contact Measurement | |
RPM Range | 2 to 20,000RPM |
Revolutions | 2 to 200,000REV |
Contact Ranges | 0 to 2000m/min; 0 to 78740in/min |
0 to 6560.8ft/min; 0 to 2187.2yds/min | |
Contact Ranges with Wheel | 0 to 20000 meters; 0 to 787402 inches; |
0 to 65608.6 feet; 0 to 21872.2 yards | |
Power | 9V Battery |
Dimensions | 6.3 x 2.4 x 1.7” (160 x 60 x 42mm) |
Weight | 5.6oz (160g) |
