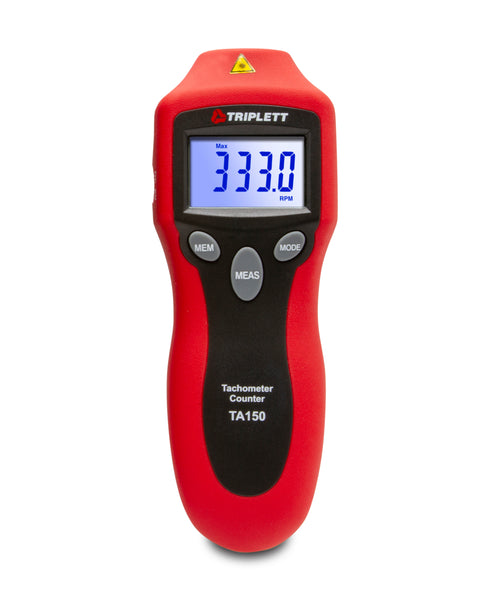

Triplett Laser Photo Tachometer TA150

Laser Photo Tachometer: Provides Fast and Accurate Non-Contact RPM of Rotating Objects and Count (REV) Measurements- (TA150)

by Triplett Test Equipment & Tools
$169.99
SKU TA150
Version

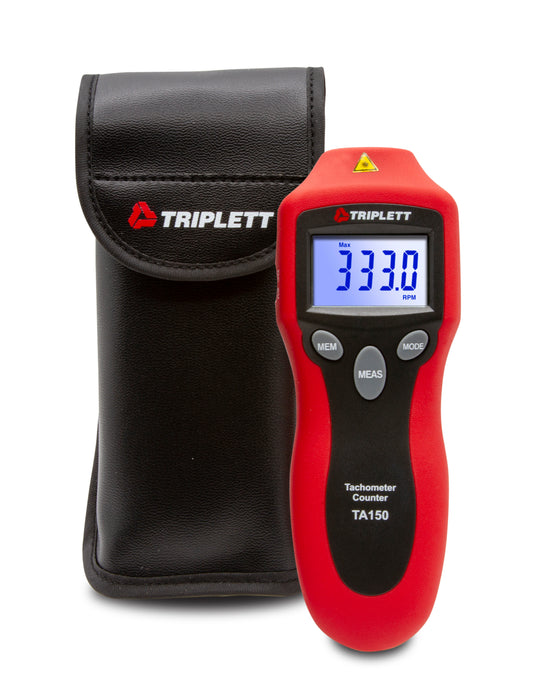

The Triplett Model TA150 Tachometer provides fast and accurate non-contact RPM of rotating objects and count (REV) measurements. The laser pointer beam provides accurate long distance measurements for photo tachometer measurements with a 19.7” (500mm) maximum target distance. It features a quartz crystal timebase, fast 0.5 second sampling rate (over 120RPM) and a 5-digit backlit LCD display. Built-in memory recalls Min/Max/Last Value stored. Includes 23” (58.4cm) reflective tape, 9V battery and carrying case. 1-year warranty.


Features
  • Two test modes: Rotational speed (RPM) and Count mode (REV)
  • 19.7” (500mm) maximum target distance
  • Memory recalls Min/Max/Last Value stored
  • Complete with 23” (58.4cm) reflective tape, 9V battery and carrying case
  • Fast and accurate non-contact RPM measurement of rotating objects
  • Wide measurement range and high resolution
  • Backlit 5-digit LCD display
  • Overmolded housing for added durability

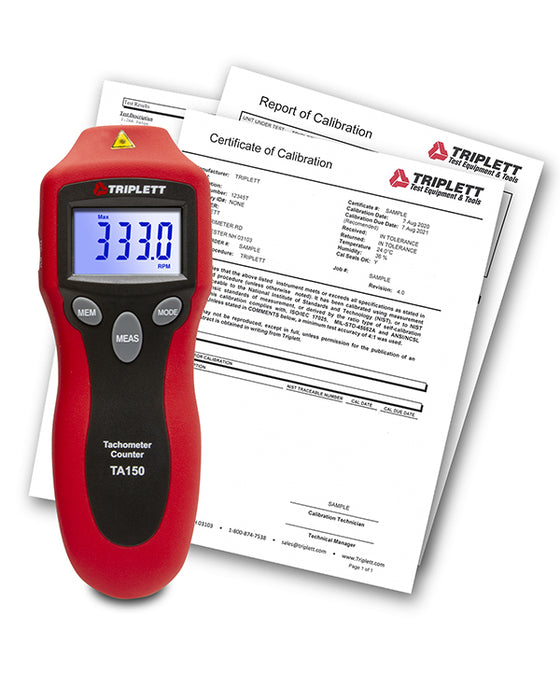

  • Optional models complete with Certificate of Traceability to N.I.S.T.
  • 1-year warranty
Specifications
TA150
RPM Range 2 to 99,999RPM
Count Range 1 to 99,999 REV
Accuracy ±0.05%
Resolution 0.1RPM
Target Distance 2 to 19.7” (50 to 500mm)
Power 9V Battery
Dimensions 6.3 x 2.3 x 1.5” (160 x 58 x 39mm)
Weight 5.3oz (151g)
Downloads

Datasheet
User Manual
