Phase Rotation Tester: Determines Correct Phase Wiring Sequence for 3-Phase System Installations CATIII 600V - (PR400)

SKU PR400
614395002312
Original price $99.99 - Original price $99.99
Original price
$99.99
$99.99 - $99.99
Current price $99.99

The Triplett Model PR400 determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations. Color-coded test leads are provided for connecting to the three mains phases of the system under test. Read More >


DESCRIPTION

The Triplett Model PR400 determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations. Color-coded test leads are provided for connecting to the three mains phases of the system under test. You can view results on an easy-to-read graphical display to see phase direction (clockwise/counter-clockwise) and which phases are live. Includes test leads with large color-coded alligator clips and carrying case. No battery is required. CAT III 600V safety category. 1-year warranty.

Also available as Motor and Phase Rotation Tester - PR450

Triplett Motor and Phase Rotation Tester PR450

CATEGORY: MOTOR & PHASE ROTATION TESTERS

Features
  • Determines correct phase wiring sequence(L1, L2, L3) for 3-phase system installation

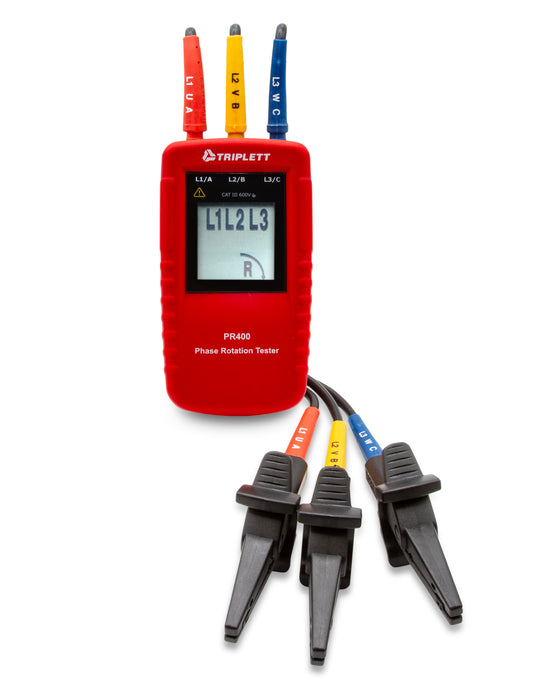

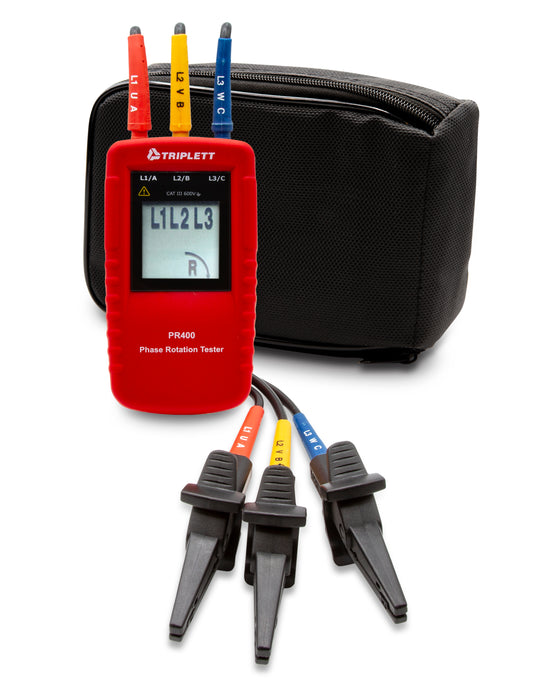

  • Complete with color coded test leads with large color-coded alligator clips, and carrying case
  • Cat III-600V safety category

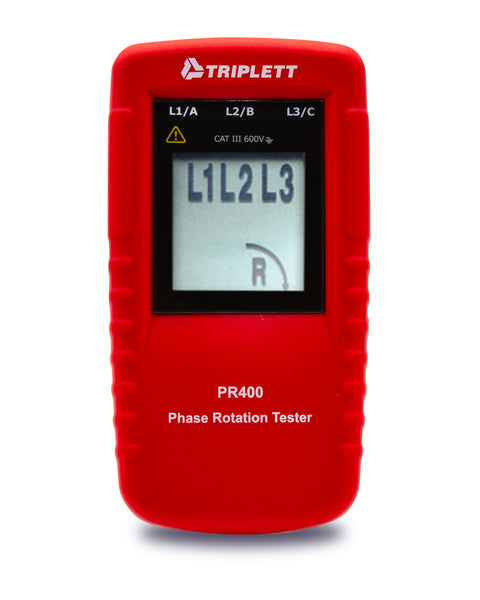

  • View results on an easy-to-read graphical display to see phase direction (clockwise/counter-clockwise) and which phases are live
  • No battery required
  • 1-year warranty
Specifications
PR400
Voltage Range 40 to 600VAC
Bandwidth 15 to 400Hz
Safety Category CAT III 600V
Dimensions 5.1 x 2.7 x 1.3” (130 x 69 x 32mm)
Weight 4.6oz (130g)
