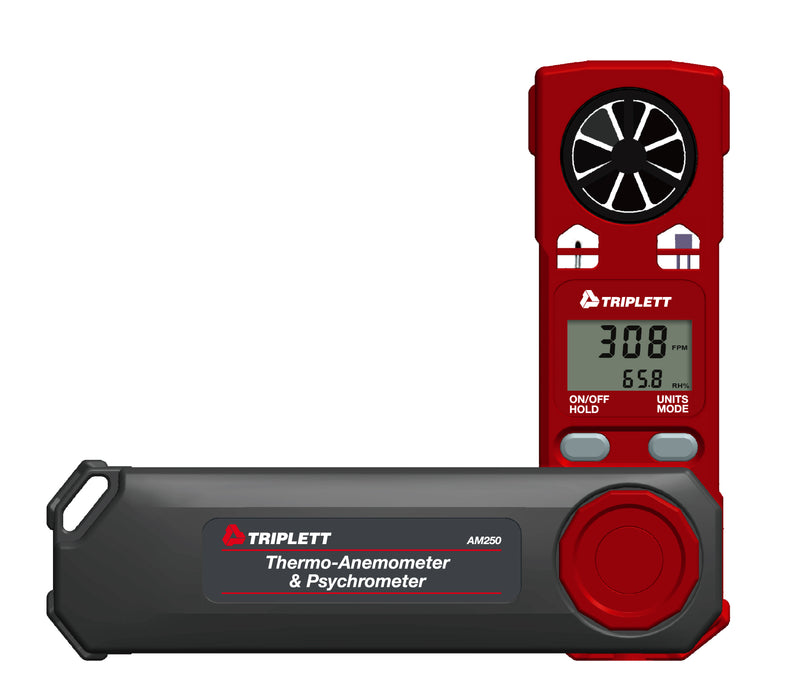

Pocket Thermo-Anemometer - (AM250)

$169.99
SKU AM250
614395003715



The Triplett Model AM250 Pocket Thermo-Anemometer measures Air Velocity up to 3936ft/min (20m/s), Air Temperature (122°F/50°C), Relative Humidity (95%RH), Dew Point (122°F/50°C) and Windchill for use in HVAC System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics and many other indoor or outdoor applications. Read More >

DESCRIPTION

The Triplett Model AM250 Pocket Thermo-Anemometer measures Air Velocity up to 3936ft/min (20m/s), Air Temperature (122°F/50°C), Relative Humidity (95%RH), Dew Point (122°F/50°C) and Windchill for use in HVAC System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics and many other indoor or outdoor applications. Measurements are displayed on a dual LCD display. The fold up protective housing extends to 9” for better reach. Max Display recalls highest reading since the meter was powered on. User-selectable averaging mode of 5 or 10 seconds. Data Hold freezes the reading on the display when taking measurements in areas where the display cannot be easily viewed. The auto power off function conserves battery life. Water resistant to 3ft (1m). Includes 1 CR2032 battery and lanyard. 1 year warranty.

CATEGORY: HOTWIRE ANEMOMETERS

Features
  • Measures Air Velocity, Temperature, Relative Humidity,
    Dew Point and Windchill
  • Fold up protective housing extends to 9” for better reach
  • Averaging mode (5 or 10 seconds)
  • Dual LCD with multifunction indicators
  • Max Display recalls highest reading since the meter was powered on
  • Data Hold freezes the display
  • Auto power off
  • Water resistant to 3ft (1m)
Specifications
  AM250
Air Velocity Range (resolution)
  216 to 3936 ft/min (20ft/min)
  1.1 to 20.0m/s (0.1m/s)
  4.0 to 72.0km/h (0.7km/h)
  2.5 to 44.7mph (0.2mph)
  2.1 to 38.9 knots (0.3 knots)
Accuracy ±3%
Beaufort Force 1 to 8BF (1BF)
Air Temperature 0 to 122°F/-18 to 50°C (0.1°F/°C)
Accuracy ±1.8°F/1°C
Relative Humidity 10 to 95%RH
Accuracy ±5%
Dew Point 32 to 122°F/0 to 50°C (0.1°F/°C)
Windchill Temperature reading factors in windchill
Power (1) CR2032 battery
Dimensions Instrument: 5.25 x 2.75 x 0.75" (133 x 70 x 19mm)
Vane: 1" (24mm) diameter
Weight 3oz (95g)
