Triplett Pocket Thermo-Anemometer AM200

Pocket Thermo-Anemometer - (AM200)

by Triplett Test Equipment & Tools
SKU AM200
614395003708
$99.99 - $99.99
$99.99
$99.99 - $99.99
$99.99

Extended Lead Time: Up to 11 business days for NIST Calibration

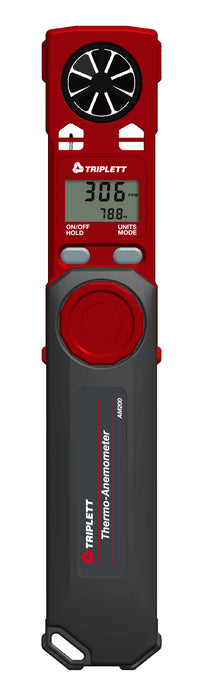

The Triplett Model AM200 Pocket Thermo-Anemometer measures Air Velocity up to 5500ft/min (28m/s), Air Temperature 122°F/50°C), and Windchill for use in HVAC System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics, and many other indoor or outdoor applications. Read More >

DESCRIPTION

The Triplett Model AM200 Pocket Thermo-Anemometer measures Air Velocity up to 5500ft/min (28m/s), Air Temperature 122°F/50°C), and Windchill for use in HVAC System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics, and many other indoor or outdoor applications. Measurements are displayed on a dual LCD display. The fold-up protective housing extends to 9” for better reach. Max Display recalls the highest reading since the meter was powered on. User-selectable averaging mode of 5, 10, or 13 seconds. Data Hold freezes the reading on the display when taking measurements in areas where the display cannot be easily viewed. The auto power-off function conserves battery life. Water resistant to 3ft (1m). Includes 1 CR2032 battery and lanyard. 1-year warranty.

CATEGORY: VANE ANEMOMETERS

Features
  • Measures Air Velocity, Temperature, and Windchill
  • Fold-up protective housing extends to 9” for better reach
  • Dual LCD with multifunction indicators
  • Averaging mode (5, 10, or 13 seconds)
  • Max Display recalls the highest reading since the meter was powered on
  • Data Hold freezes the display
  • Auto power off
  • Water resistant to 3ft (1m)
Specifications
  AM200
Air Velocity Range (resolution)
  100 to 5500 ft/min (20ft/min)
  0.5 to 28.00m/s (0.01m/s)
  1.8 to 100.6km/h (0.7km/h)
  1.1 to 62.5mph (0.2mph)
  1.0 to 54.3 knots (0.3 knots)
Accuracy ±3%
Beaufort Force 1 to 17BF (1BF)
Air Temperature 0 to 122°F/-18 to 50°C (0.1°F/°C)
Accuracy ±1.8°F/1°C
Windchill Temperature reading factors in windchill
Power (1) CR2032 battery
Dimensions Instrument: 5.25 x 2.75 x 0.75" (133 x 70 x 19mm)
Vane: 1" (24mm) diameter

Downloads

Datasheet
User Manual

FAQs
  • Q. What is a Pocket Thermo-Anemometer?
    A. A Pocket Thermo-Anemometer is a compact, portable device designed to measure air velocity (wind speed) and temperature simultaneously. It's ideal for quick measurements on the go.
  • Q. How do I operate the AM200 Pocket Thermo-Anemometer?
    A. Operating the AM200 is simple. Power on the device, choose the desired measurement unit and aim the sensor at the airflow to determine the speed. The results will be displayed on the large LCD screen.
  • Q. Does the AM200 Pocket Thermo-Anemometer have a data-hold function?
    A. Yes, the AM200 includes a data-hold function. This feature lets you freeze the displayed measurement on the screen, making it convenient for recording and reference, especially in hard-to-reach areas.
  • Q. How do I maintain and clean a Pocket Thermo-Anemometer?
    A. To ensure accurate measurements and longevity, it is advisable to clean the device regularly, especially the sensors, and store it in a dry and safe environment when not in use.
