Non-Contact Phase Rotation Tester - (PR600)

Non-Contact Phase Rotation Tester - (PR600)

by Triplett
SKU PR600
614395004439
$209.99 - $209.99
$209.99
$209.99 - $209.99
$209.99

The Triplett Model PR600 Non-Contact Phase Rotation Tester determines the correct phase wiring sequence for 3-phase system installations. You can clip on to insulated wires with a maximum conductor diameter of 1.3" (33mm). Read More >


DESCRIPTION

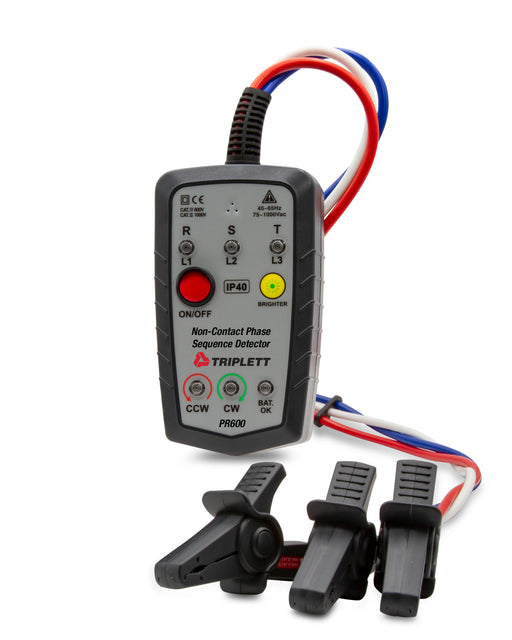

The Triplett Model PR600 Non-Contact Phase Rotation Tester determines the correct phase wiring sequence for 3-phase system installations. You can clip on to insulated wires with a maximum conductor diameter of 1.3" (33mm). View the results on an easy-to-read LED display to see phase direction (clockwise/counterclockwise) and which phases are live. A buzzer sounds to indicate live wire and clockwise (intermittent beep) or counter clockwise (continuous beep) direction. There are 2 selectable brightness levels for use in sunlight or dimly lit areas and a back cover magnet that mounts on to metal surfaces for hands-free operation. Additional features include Auto power off and Low Battery indicator. CAT IV 600V safety category. Includes 59" (1.5m) test leads with large color-coded alligator clips, 9V battery and soft case.


CATEGORY: MOTOR & PHASE ROTATION TESTERS

Specifications
  • Clip on to insulated wires with a maximum conductor diameter of 1.3" (33mm)
  • Determines correct phase wiring sequence for 3-phase system installation
  • View results on an easy-to-read LED display to see phase direction (clockwise/counterclockwise) and which phases are live
  • Buzzer sounds to indicate live wire and clockwise (intermittent beep) or counter clockwise (continuous beep) direction
  • 2 selectable brightness levels for use in sunlight or dimly lit areas

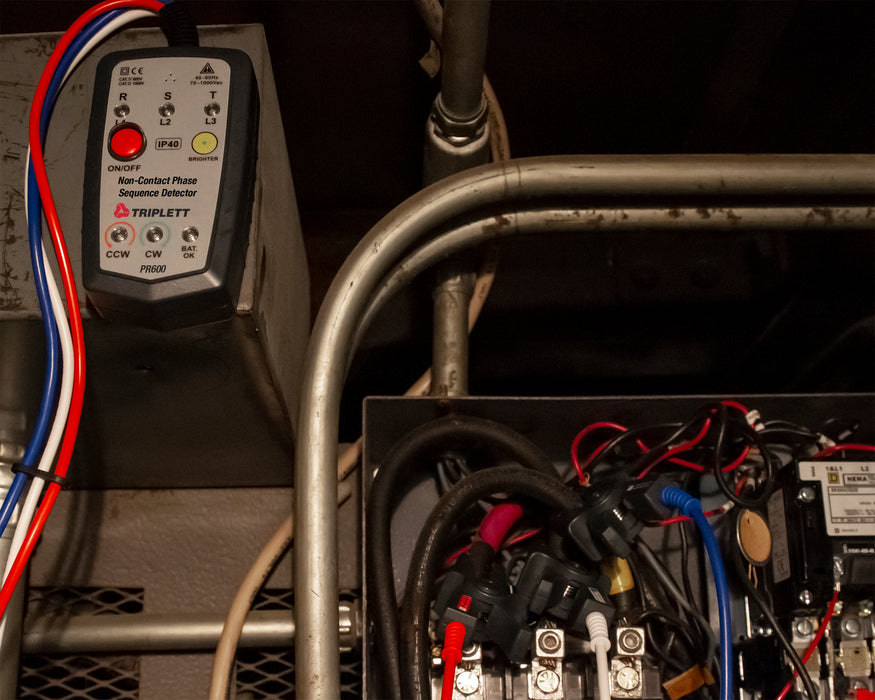

  • Back cover magnet mounts on metal surfaces for hands-free operation
  • Auto power off
  • Low Battery indicator
  • CAT IV 600V safety category

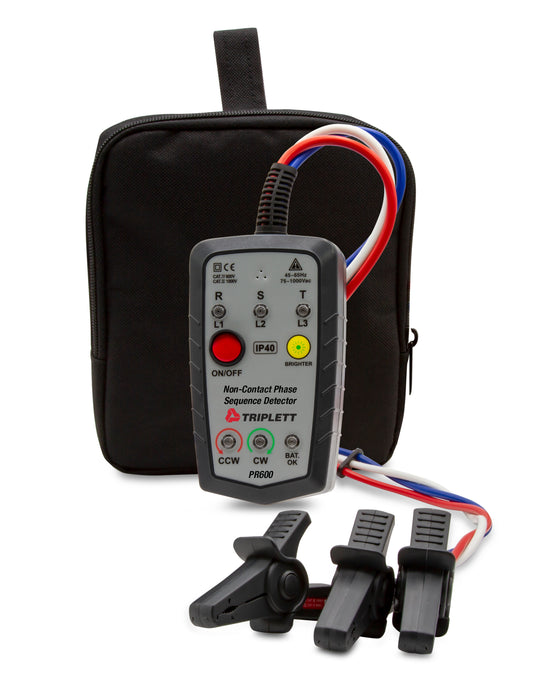

  • Includes 59" (1.5m) test leads with large color-coded alligator clips, 9V battery and soft case
Specifications
  PR600
Voltage Range 75 to 1000VAC
Bandwidth 45 to 65Hz
Max Conductor Diameter 1.3" (33mm)
Power 9V Battery
Safety Category CAT IV 600V
Dimensions 5 x 2.8 x 1.8" (128 x 72 x 46mm)
Weight 13.2oz (375g)
