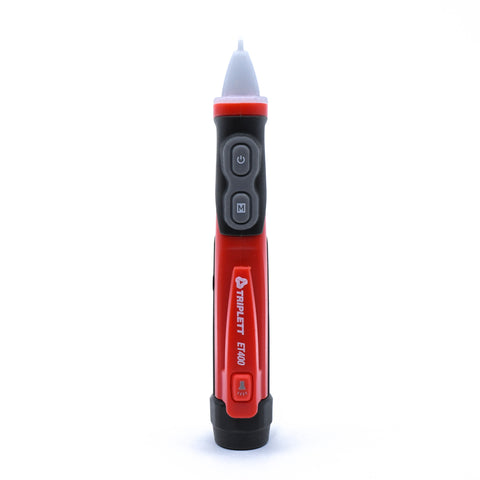

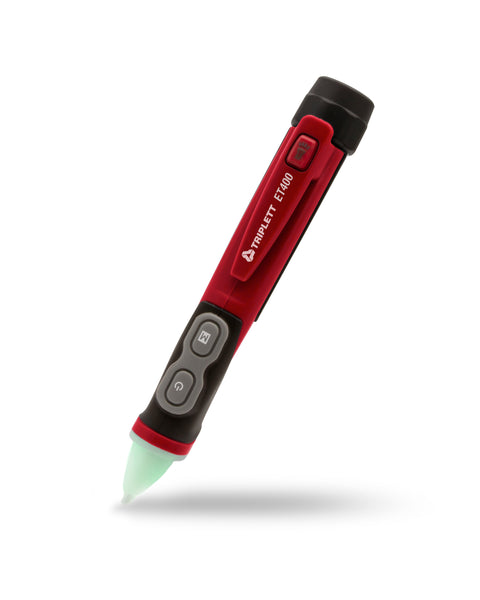

Non-Contact AC Voltage Detector and Phase Sequence Indicator (ET400)

Non-Contact AC Voltage Detector and Phase Sequence Indicator (ET400)

by Triplett Test Equipment & Tools
SKU et400
614395004637
$39.59 - $39.59
$39.59
$39.59 - $39.59
$39.59

Extended Lead Time: Up to 11 business days for NIST Calibration

Product Information

  • The Triplett ET400 combines a Non-Contact Voltage and Phase Sequence Tester.
  • It has dual AC voltage ranges: 12 to 1000V and 100 to 1000V with high sensitivity that allows it to detect low voltage AC wiring commonly found in doorbell circuits, thermostats, control circuits, and video surveillance camera power.
  • In addition, you can quickly determine the correct phase wiring sequence (L1, L2, L3) for 3-phase system installation.
  • It features a built-in flashlight and CAT IV 1000V safety category.
  • Includes (2) AAA batteries.

CATEGORY: AC VOLTAGE DETECTOR

  • Quickly determines the presence of Ac Voltage and correct phase wiring sequence
  • Dual AC ranges: 24 to 1000V and 90 to 1000V
  • Audible and Visual indicators
  • Quickly determine the correct phase wiring sequence (L1, L2, L3)
  • Built-in flashlight
  • CAT IV 1000V safety category
  • Includes (2) AAA batteries
  ET400
AC Voltage Range 12 to 1000VAC
100 to 1000VAC
Phase Voltage Range 100 to 1000VAC
Frequency Range 50/60Hz
NCV Alarm Mode Audible and Visual
Phase Sequence Indicator Verifies correct L1, L2, L3
Phase Sequence Alarm Mode Audible with Green/Yellow Lights
Waterproof IP67
Power (2) AAA batteries
Safety Category CAT IV 1000V
Dimensions 6.3 x 0.9 x 1” (160 x 23 x 25mm)
Weight 2.6oz (72.8g)
Datasheet
User Manual (PDF)
