3 ½ Digit 2,000 Count True RMS Manual Ranging Digital Multimeter - (MM300)

SKU MM300
614395002237
Original price $29.99 - Original price $104.99
Original price
$29.99
$29.99 - $104.99
Current price $29.99
Version: Standard

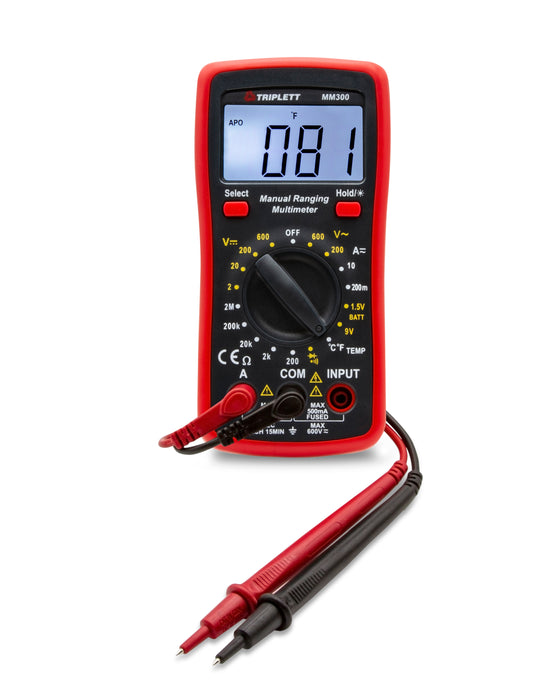

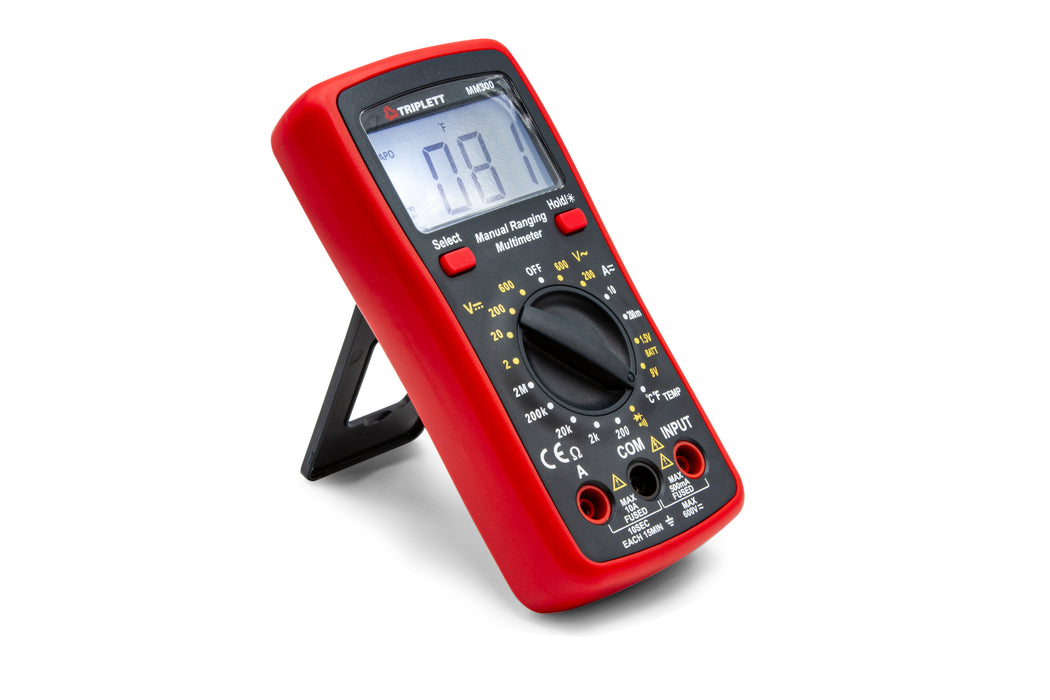

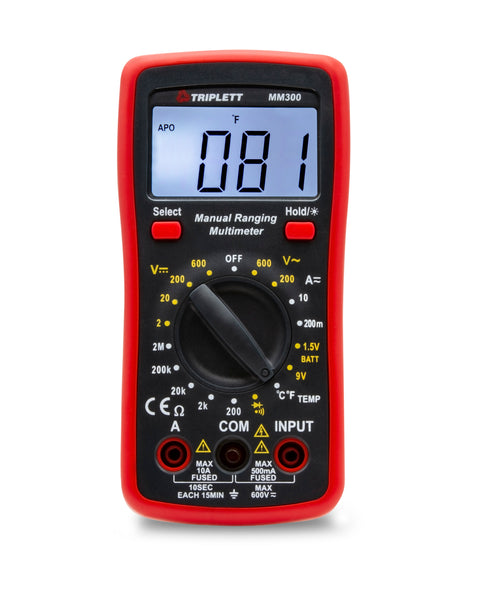

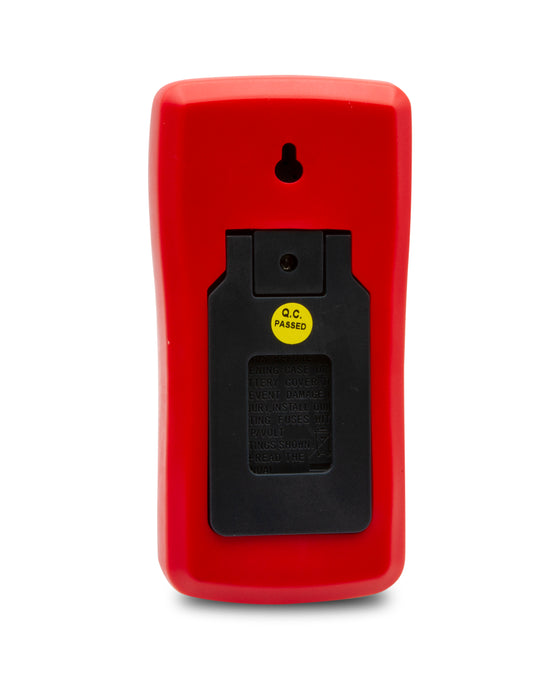

The Triplett Model MM300 is a manual ranging 3-1/2 digit (2000 count) True RMS compact digital multimeter. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Read More >


DESCRIPTION

The Triplett Model MM300 is a manual ranging 3-1/2 digit (2000 count) True RMS compact digital multimeter. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. It measures AC/DC Voltage, AC/DC Current, Resistance, Temperature, Battery Test (1.5V & 9V), Continuity and Diode Test. It features Data Hold, Auto power off, and a low battery indicator. With a CAT III 600V safety rating, the MM300 is well suited for a variety of commercial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads and (3) AAA batteries. 1-year warranty.

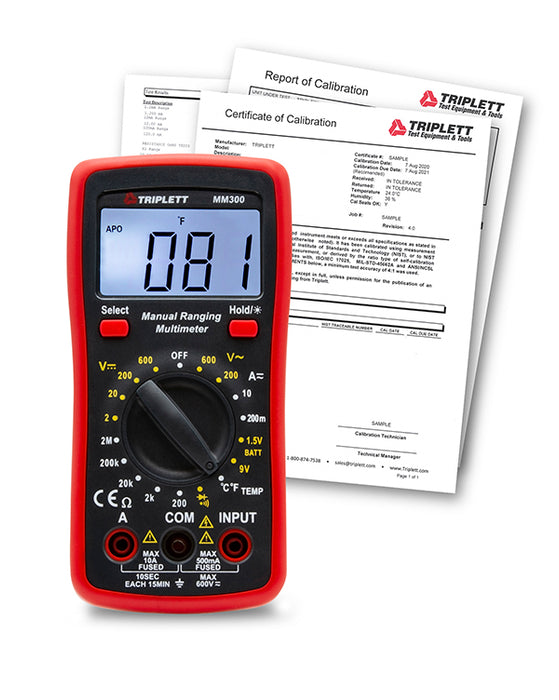

MM300-NIST Comes with Certificate of traceability to NIST standards
Please add 11 business days lead-time for the NIST calibration process

CATEGORY: DIGITAL MULTIMETER

Features
  • True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
  • Measures AC/DC Voltage and Current, Resistance, Temperature, Diode, Continuity, and 1.5V/9V Battery Test
  • Data Hold
  • Auto power off
  • Low battery indicator
  • CAT III 600V safety category

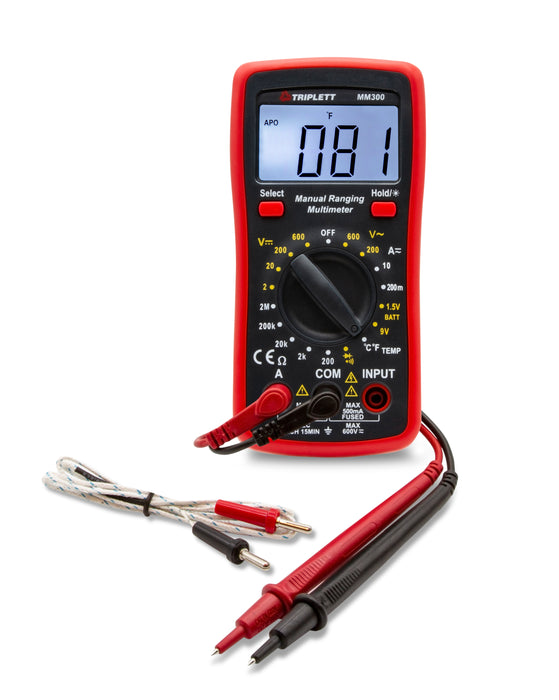

  • Includes test leads and (3) AAA batteries
  • 1-year warranty
Specifications
  MM300
Display counts 2000 count
Basic Accuracy ±0.8%
AC/DC Voltage 600V
AC/DC Current 10A
Resistance 2MΩ
Temperature -40 to 2000°F (-40 to 1370°C)
Continuity <30Ω
Battery Test 1.5V, 9V
Power (3) AAA batteries
Safety Category CAT III-600V
Dimensions 5.7 x 2.8 x 1.4" (145 x 70 x 35mm)
Weight 5.5oz. (157g)
