CCTV Security Camera Test Monitor: 8" HD 1080p LED Display - (HDCM3)
Use with Security Cameras during setup, testing, and monitoring; DVRs, Cable/Satellite TV boxes, and DVD Players; Computers and Laptops as a second monitor; DSLR Cameras as a second screen while broadcasting live events; Raspberry PI Projects, and much more. Portable lightweight design, weighs only 1 lb. (0.45 kg)
CATEGORY: CCTV TEST MONITOR
Features
- 8” HD TFT LED monitor with 1280 x 720 resolution
- Connects using HDMI, VGA, and AV inputs
- Full HD 1080p screen resolution
- Rechargeable battery with AC adapter
- Built-in speaker with volume control button
- Ruggedized outer construction
- Mounts to a desk or wall using the included swivel stand
Product Overview

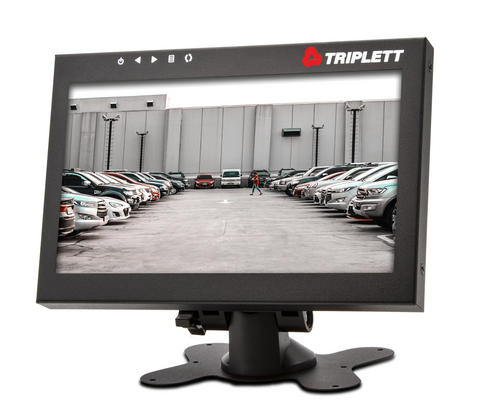

Triplett HDCM3 HDMI and Composite Video Test Monitor
Ultra-Compact Rugged HD Monitor
This is a multi-purpose ruggedized HD LED monitor. It can be used for temporary or permanent connection to any NVR, DVR, Cable/Satelllite box, computer, or other video source that has an HDMI, AV, VGA, or BNC connection.
Use with:
-Security Cameras during setup, testing, and monitoring.
-DVRs, Cable & Satellite TV boxes, & DVD Players.
-Computers and Laptops as a second monitor.
-DSLR Cameras as a second screen while broadcasting live events.
-Raspberry PI Projects and much more!
- High definition 1080P LED screen
- Connections on top for easy access
- Built-in rechargeable battery plus A/C adapter provided
- Ruggedized for field use
- Two-click Input selection
- Includes stand
- The HDCM3 will not work directly connected to HD Analog Cameras or anything that uses proprietary encoding
8” HD LED Monitor with 1080P HDMI
|
|
|
|
|---|---|---|
|
4:3 LED HD Digital Panel. |
Compact & ruggedized for real-world use. |
Includes stand, AC Adapter & HDMI cable |
Specifications
| HDCM3 | |
| Screen Size | 8” TFT LED |
| Backlight Lamp | LED Backlight |
| Resolution | 1280 x 720 |
| Aspect Ratio | 16:09 |
| Brightness | 450cd/m2 |
| Response Time | >5ms |
| Contrast | 1000:01:00 |
| Viewing Angle | 178°/178° |
| Display Mode | HDMI (1080p, 1080i, 720p) |
| Audio | 1 BNC input; 3.5mm earphone jack; Built-in 1W speaker in front panel |
| Languages | Nine: English, French, Spanish, Italian, German, Russian, Korean, Japanese, Chinese |
| Power | 100 to 240VAC, rechargeable battery, or 12VDC/2A |
| Dimensions/Weight |
7.4 x 5.2 x 1.2” (188 x 130.7 x 31mm) / 1lb (0.45kg) |
Includes
- HDMC3 Monitor
- Wall- or desk-mountable swivel stand
- AC adapter/charger
- 1500mAH rechargeable battery
Downloads
FAQs
-
Q. Is the BNC input just for audio? Or also video?
A. You may also use the BNC for video.
