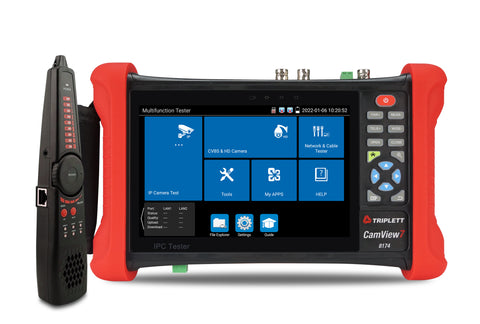

Triplett 8174 CamView 7" Camera Tester with 2.4G Spectrum Analyzer

CamView 7" Camera Tester with 2.4G Spectrum Analyzer - (8174)

Free Shipping
by Triplett
SKU 8174
614395004255
$699.99 - $699.99
$699.99
$699.99 - $699.99
$699.99

Extended Lead Time: Up to 11 business days for NIST Calibration

The Triplett Model 8174 CamView 7" Security Camera Tester with 7” Retina touch screen (1920 x 1200 resolution), 16 hour battery life, and advanced capabilities is ideal for CCTV system installation and maintenance, Network cabling project installation and maintenance. Read More >

DESCRIPTION

The Triplett Model 8174 CamView 7" Security Camera Tester with 7” Retina touch screen (1920 x 1200 resolution), 16 hour battery life, and advanced capabilities is ideal for CCTV system installation and maintenance, Network cabling project installation and maintenance, 8MP TVI/8MP CVI/8MP AHD/H.265/H.264/4K camera testing with PTZ control, and video transmission channel testing. HDMI input & output supports up to 1080p. Network testing includes: Ping, IP scan, Port Flash, DHCP server, Trace Route. Additional features include: Built-in Wi-Fi analyzer with 2.4G signal strength tester and hot spot generator (Chrome browser included). Dual 1000M LAN ports, to check network bandwidth, packet loss or error data. 4x Zoom to enlarge on screen image, screen snapshot, screen record, save, view, record and playback video, plus DC 24V 2A Power output and 24W, 48V DC PoE Power output / DC 12V 3A, Rapid ONVIF, TDR/RJ45 Cable Tester, UTP cable tester (Max 180M), and up to a 16hr battery life.

CATEGORY: SECURITY CAMERA TESTERS

Features
  • 7” Camera Tester with advanced capabilities and up to 16hr battery life
  • 8MP TVI, 8MP CVI, 8MP AHD, CVBS camera test with PTZ control
  • H.265/H.264, 4K video display via mainstream
  • HDMI input & output supports up to 1080p
  • Network testing includes: Ping, IP scan, Port Flash, DHCP server, Trace Route
  • Built-in Wi-Fi analyzer with 2.4G signal strength tester and hot spot generator; Chrome browser included
  • Dual 1000M LAN ports, to check network bandwidth, packet loss or error data
  • 4x Zoom to enlarge on screen image, screen snapshot, screen record, save, view, record and playback video
  • 24W, 48V DC PoE Power output / DC 12V 3A
  • Includes network cable tester, 12V DC 2A Adaptor, 8GB SD Card, Polymer Lithium Ion Battery (7.6V DC 7800mAh), BNC, RS485, Audio, DC power cables, safety cord and carrying case
Specifications
  8174
Display Size 7 inch touch screen with retina display
Display
Resolution		 1920 x 1200 resolution
CVBS 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto detect)
Analogue video level meter, peak video signal level, SYNC signal level, Color bar
Chroma level measurement
PTZ control, RS485 control, Baudrate 600-115200bps
CVBS loop test Send and receive color bar generator signal, check BNC cable
IP camera test IP Discovery / Quick ONVIF / IPC test / IPC viewer / RTSP Player / Client APK / Auto HD - Auto Detect Type
Rapid Video Auto Login to view the video and create test report
IP & CVBS test Test IP & CVBS video simultaneously, utilizing dual test window feature
Coaxial HD test
(auto HD
automatically recognizes
the type of
HD Signal)		 8MP AHD test, 3840 x 2160P 15 fps
8MP TVI test, 3840 x 2160P 15 fps HD-SDI/Ex-SDI Camera Testing
8MP CVI test, 3840 x 2160P 12.5/15fps
HDMI input 1 channel HDMI input, supports up to 4K
Zoom Image 4x zoom to enlarge on screen image, screen snapshot, screen record, save, view, record & play back video
Color bar
generator		 Output one channel PAL/NTSC color bar video signal for testing monitor or video cable, 24V DC 2A Power Out
HDMI output 1 channel HDMI output, supports up to 1080P for testing HDMI input of monitor
Power output 12V DC/3A Power Output
48V PoE power output, max power 24W
5V/2A USB power output
Cable tracer Trace BNC, network and telephone cables
UTP cable test Test UTP cable connection status and display on the screen. Read the number on the screen
RJ45 cable
TDR test		 Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. (max range 180m)
Network Test Trace route, Link monitor, DHCP server, port flashing, ping test
Wi-Fi Built in WiFi, 150M speeds
Audio Test 1 channel audio signal input, to test if sound is normal, 1 channel audio signal for headphones
Data Monitor Captures and analyses the command data from controlling device; can also send hexadecimal data
PoE test Measures POE switch or PSE power supply voltage and cable connection status
External
power supply		 DC 12V 2A
Battery Built-in 7.6V Lithium polymer battery, 7800mAh
Rechargeable
battery life		 3.5-4 hour charge, achieves up to 16 hours operation
Operation setting OSD menu, select your desired language: English, Chinese,
Korean,Russian, Italian, French, Polish, Spanish, Japanese, etc.
Auto power off 1-30 mins
TesterPlay Screen projection: tester, mobile phone and PC display at the same time (for android version mobile phone)
Wi-Fi Analyzer Detect the surrounding wi-fi signal and signal strength, supports 2.4G frequency band
Drop-down Menu Select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface
Dimensions/
Weight		  9.4 x 6.1 x 1.8" / 1.4lbs (240 x 154 x 46 / 620g)



Downloads
Datasheet
User Manual
FAQs
  • Q. I am getting wrong password and username message
    A. User name and password information is not an error of the tester. This information is the camera only. Our testers do not have any passwords or user information requirements. If you are having trouble with passwords you need to contact the camera manufacturer or refer to their manual for default user name password information or details on any special set up specifications they may have for initializing their cameras.

  • Q. How do I setup an AXIS Camera to allow ONVIF Users
    A. Download our Setting up an Axis Camera to allow ONVIF Users Document
    and Axis ONVIF Setup V178 Document

  • Q. Can the camera tester create reports on the cables that are tested with it?
    A. The 8174 can only generate reports on cameras it has connected to, showing things like user and camera information. It cannot generate reports on cable tests.

  • Q.  Can these devices be scanned for Virus?
  • A. The 8174 can be scanned if you download the proper software (they have an android operating system that can add and remove applications).
  • Q. Can wireless be deactivated?
  • A. Wi-Fi can be enabled and disabled.
