High Definition Borescope Inspection Camera (Dual Camera), 5mm, 5M Cable- (BR350)

$269.99
SKU BR350
614395004217

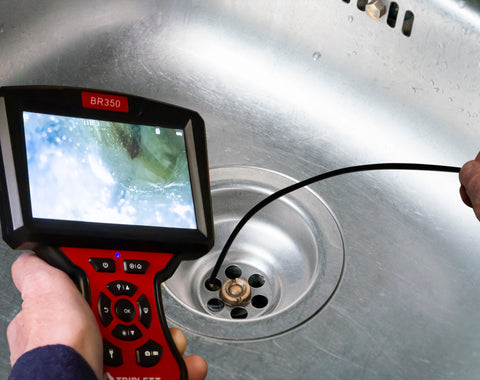

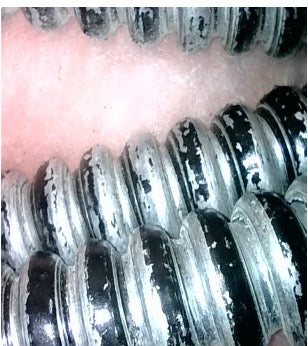

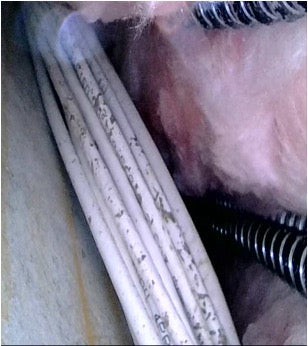

The Triplett BR350 High Definition Videoscope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation. Read More >

DESCRIPTION

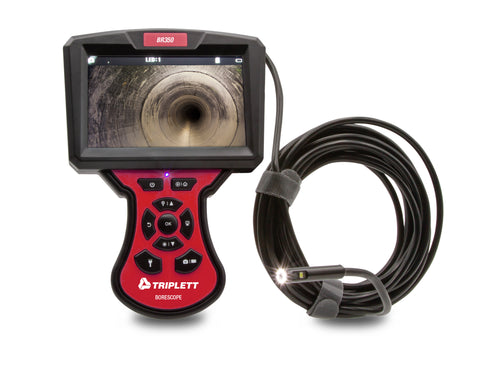

The Triplett BR350 High Definition Videoscope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation. It has dual 5.5mm waterproof (IP67) cameras with 8 adjustable LEDs with 3 brightness levels and a built-in auxilliary light illuminates darkened work areas for inspection. It features a 5" Color LCD monitor with 1920 x 1080 resolution, 3X zoom, and 180° screen view rotation. The BR350 has a built-in clock/calendar and can record video (.AVI) and images (.JPG) with a freeze function during live viewing. You can view captured video/images on the display or transfer to your PC using the USB interface or removable microSD card (64GB max). The BR350 can store up to 4k images on the included 4GB microSD card and supports 8 languages (English, French, German, Italian, Russian, Japanese, and Chinese). It comes complete with Videoscope, dual 5.5mm camera probe with 5m cable, 5V Li-Po rechargeable battery, microSD card, USB cable, and camera accessories (magnet, hook).

CATEGORY: VIDEO BORESCOPES & INSPECTION CAMERAS

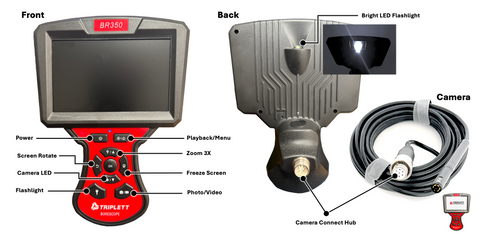

Features

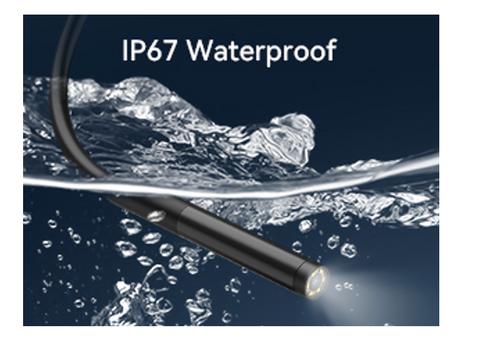

  • Dual waterproof (IP67) 5.5mm cameras

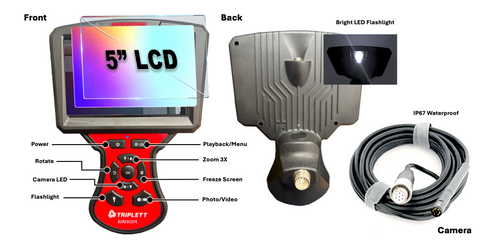

  • 5" Color LCD monitor with 1920 x 1080 resolution

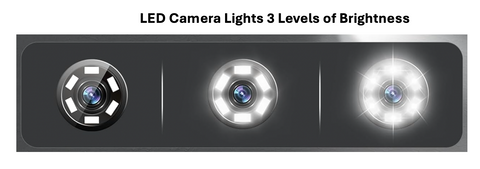

  • 8 adjustable LEDs with 3 brightness levels
  • Built-in auxiliary light illuminates darkened work areas for inspection
  • Screen view rotates 180°
  • 3X zoom
  • Built-in clock/calendar
  • View captured video/images on the display or transfer to your PC using the USB interface or removable microSD card (64GB max)
  • Store up to 4k images on the included 4GB microSD card
  • Freeze function during live viewing

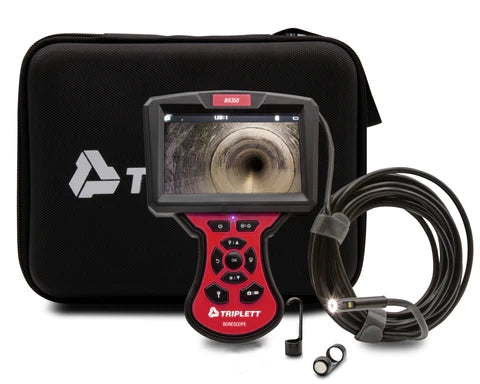

  • Includes dual 5.5mm camera probe with 5m cable, 5V Li-Po rechargeable battery, microSD card, USB cable, and camera accessories (magnet, hook, mirror)
Specifications
  BR300 BR350

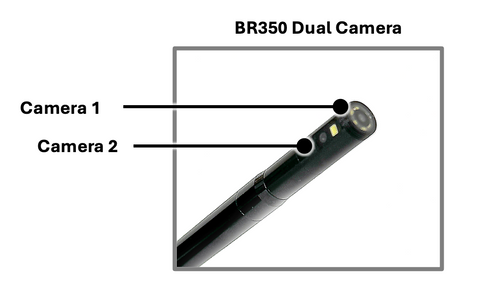

Camera Single (Forward View) Dual (Forward and Side View)
Diameter 5.5mm 5.5mm
Field of View 60° 60°
Depth of View 1.6" (4cm) 1.6" (4cm)
Resolution 1920 x 1080 1920 x 1080
Display Unit
Display 5" Color (1920 x 1080) 5" Color (1920 x 1080)
Image Zoom 3X 3X
Video Output Format NTSC or PAL NTSC or PAL
Storage 4G microSD Card included
(up to 64GB max)
4G microSD Card included
(up to 64GB max)
Still Image Format JPEG (1920 x 1080) JPEG (1920 x 1080)
Video Recording Format AVI (1920 x 1080) AVI (1920 x 1080)
Interface USB USB
Power 5V Li-Po Battery 5V Li-Po Battery
Dimensions 8.5 x 4.5 x 1.5”
(216 x 114 x 38.1mm)
8.5 x 4.5 x 1.5”
(216 x 114 x 38.1mm)
Weight 0.9lbs (0.4kg) 0.9lbs (0.4kg)


Downloads

Datasheet
User Manual

FAQs
  • Q. Would the camera on these be resistant to jet fuel? Could it be submerged in jet fuel without damaging the camera?
    A. Yes, it can be used for inspection inside a jet engine (jet fuel) but the if the jet fuel temperature is under 10°C (50°F) then it won’t work for a very long time. Also, after finishing the inspection, We suggest you use some alcohol to clean the camera.
