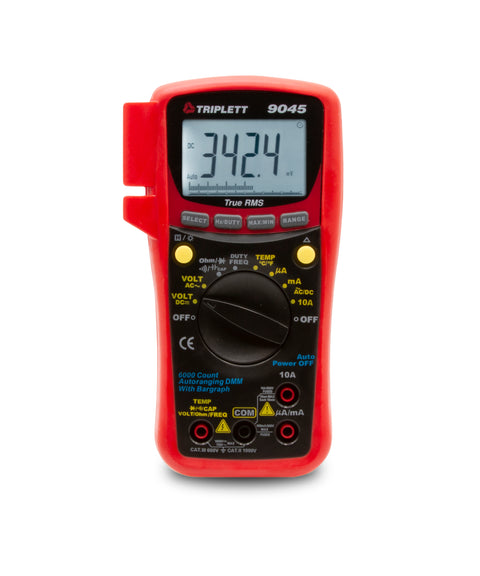

3 ¾ Digit 6000 Count Digital Multimeter: True RMS CAT III 600V - (9045)
The Triplett Model 9045 is a 3-3/4 digit (6000 count) high performance digital multimeter with True RMS readings. It offers a large variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Temperature, Frequency, Capacitance, Continuity, and Diode Test. Read More >
DESCRIPTION
The Triplett Model 9045 is a 3-3/4 digit (6000 count) high performance digital multimeter with True RMS readings. It offers a large variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Temperature, Frequency, Capacitance, Continuity, and Diode Test. The rubberized overmolded housing provides impact and drop resistance in a sleek ergonomic design, and the user-friendly Auto Power Off feature helps maximize battery life. CAT III 600V design provides superior resistance to damage from transient overvoltages in any demanding industrial settings. The Model 9045 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, alligator clips, K type temperature probe, and 9V battery. 3 year warranty.

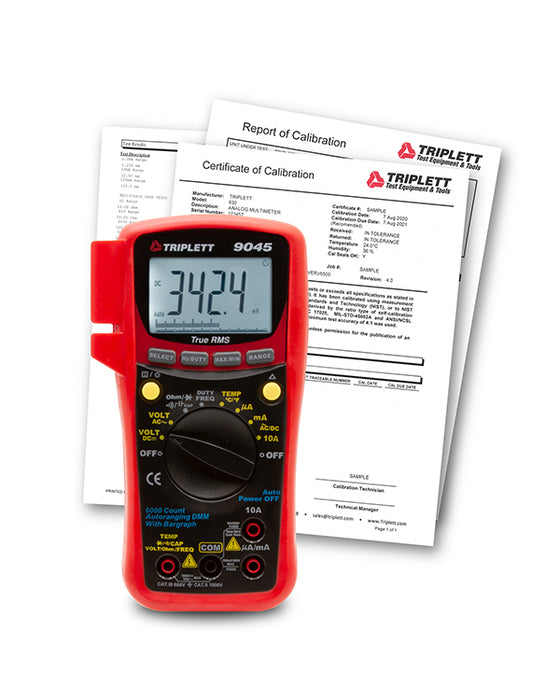

9045-NIST Comes with Certificate of traceability to NIST standards
Please add 11 business days lead-time for the NIST calibration process
CATEGORY: DIGITAL MULTIMETER
Features
- 44 measurement ranges with True RMS for non-sinusoidal or noisy waveforms
- 6000 count 3-3/4 digit backlit display with analog bargraph
- Temperature, Frequency and Capacitance measurement
- Double molded splash proof, dust proof, drop resistant case with built-in stand and CAT III 600V safety rating
- Lead time for NIST Certified products is 5-7 business days
- Upon order placement, please provide the company name that should appear on the certificate. Without this information, we will not be able to provide a certificate of calibration.
Product Overview
Perfect for Professional and DIY Use
|
|
|
|
|---|---|---|

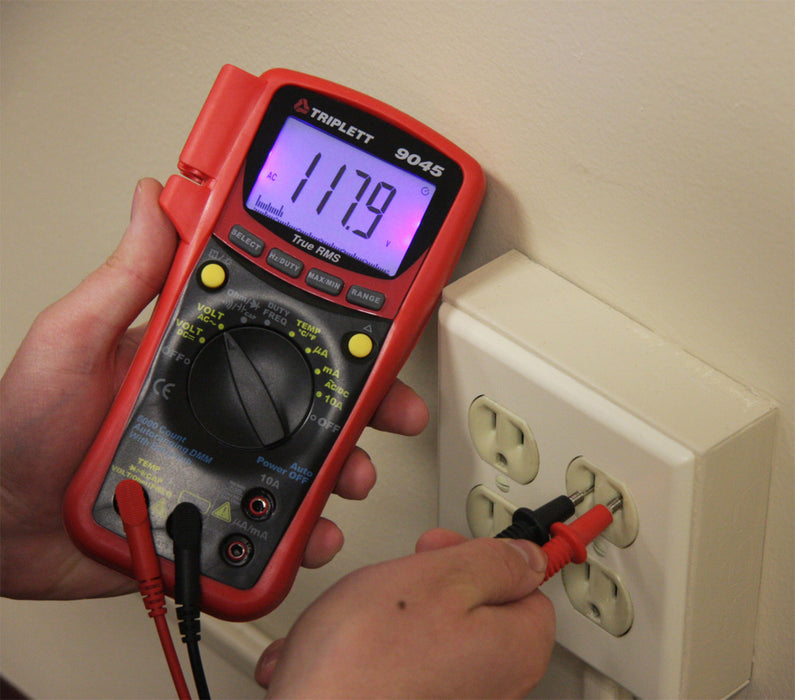

ApplicationsThe 9045 is well suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. |
Rugged DesignThe rubberized overmolded housing provides impact and drop resistance in a sleek ergonomic design. |
Variety of Measurement RangesSelect from 44 ranges including including AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode Test, and Capacitance. |
Triplett Solutions for Every Contractor
|
|
|
|
|---|---|---|
Max VoltageAn industry standard CAT III design provides superior resistance to damage from transient overvoltages in any demanding industrial settings. |
Large Backlit Screen with 61 Segment BargraphThe large 3-3/4 digit, 6000 count display lights up with the press of a button for use in dark areas. |
Auto Power OffThe user-friendly Auto Power Off feature helps maximizes battery life. |
Specifications
| Specifications | Range |
| Auto/Manual Ranging | Autoranging |
| True RMS/Averaging | True RMS |
| Basic Accuracy | ±0.8% |
| AC Voltage | 1mV to 750V |
| DC Voltage | 0.1mV to 1000V |
| AC Current | 0.1µA to 10A |
| DC Current | 0.1µA to 10A |
| Resistance | 0.1Ω to 60MΩ |
| Temperature | -4 to 1400°F (-20 to 750°C) |
| Capacitance | 10nF to 4000µF |
| Frequency | 0.001Hz to 10MHz |
| Duty Cycle | 0.1 to 99.9% |
| Analog Bargraph | 61 segments |
| Safety Category | CAT III-600V |
| Dimensions | 7 x 3.7 x 1.5" (178 x 94 x 38mm) |
| Weight | 11oz (312g) |

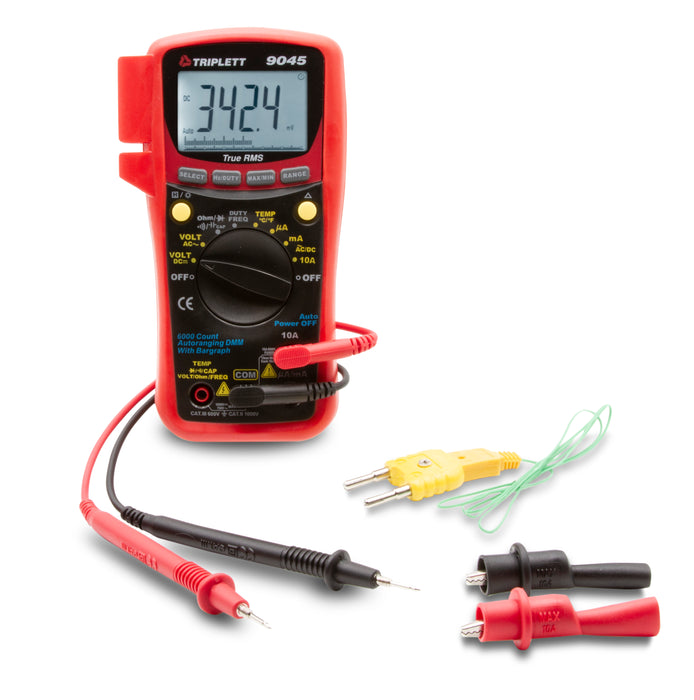

Includes
- Model 9045 Digital Multimeter
- Test leads
- Alligator clips
- K type temperature probe
- 9V battery
