360° Rotating Camera High Definition Borescope - (BR400)

Free Shipping
SKU BR400
614395004699
Original price $599.99 - Original price $599.99
Original price
$599.99
$599.99 - $599.99
Current price $599.99

Extended Lead Time: Up to 11 business days for NIST Calibration

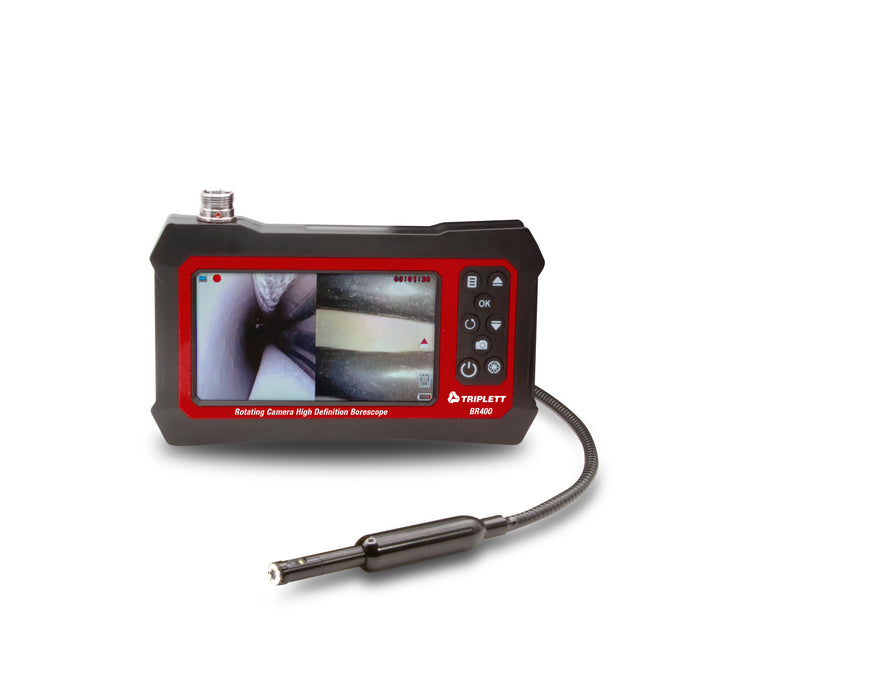

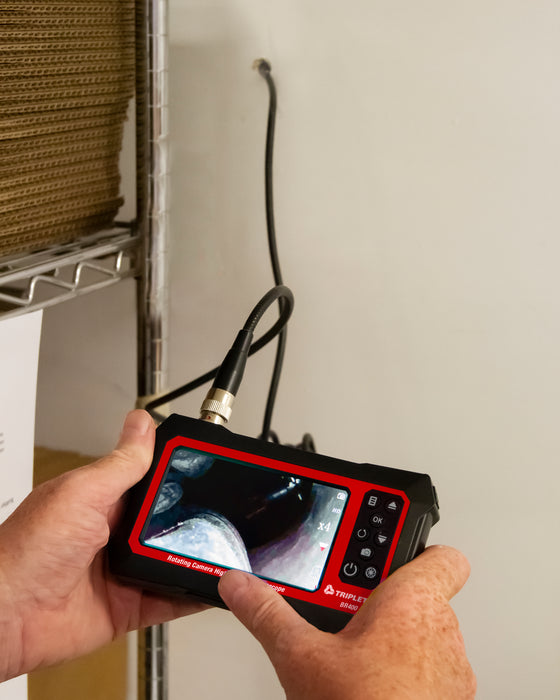

The Triplett BR400 360° Rotating High Definition Videoscope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation. Read More >

DESCRIPTION

The Triplett BR400 360° Rotating High Definition Videoscope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation. It has dual 8mm waterproof (IP67) cameras, that can be displayed simultaneously, with 6 adjustable LEDs and a built-in auxiliary light illuminates darkened work areas for inspection. It features a 4.3" Color LCD monitor with 1920 x 1080 resolution, 4X zoom, and 360° forward and reverse screen view rotation. The BR400 can record video (.AVI) and images (.JPG) that can be viewed on the display or transfered to your PC using the USB interface or removable microSD card (64GB max). The BR400 supports 8 languages (English, French, German, Italian, Russian, Japanese, Simplified Chinese, Traditional Chinese). It comes complete with Videoscope, 360° rotating dual 8mm cameras with 3m cable (13.5mm diameter), Li-Po rechargeable battery, AC Adapter/Charger, SD card, USB cable, camera accessories (magnet, hook, protective cap), and carrying case.

CATEGORY: VIDEO BORESCOPES & INSPECTION CAMERAS

Features
  • Forward and reverse 360° rotation
  • Waterproof (IP67) 8mm cameras and 3m cable (13.5mm diameter)
  • Cameras can be displayed simultaneously
  • 4.3" Color LCD monitor with 1920 x 1080 resolution
  • 6 adjustable LEDs and built-in auxiliary light illuminate darkened work areas for inspection
  • Record video (.AVI) and images (.JPG)
  • View captured video/images on the display or transfer to your PC using the USB interface or removable SD card (64GB max)
  • Supports 8 languages (English, Spanish, French, German, Italian, Russian, Japanese, Simplified Chinese, Traditional Chinese)
  • Operates on rechargeable battery  (4-hour battery life)

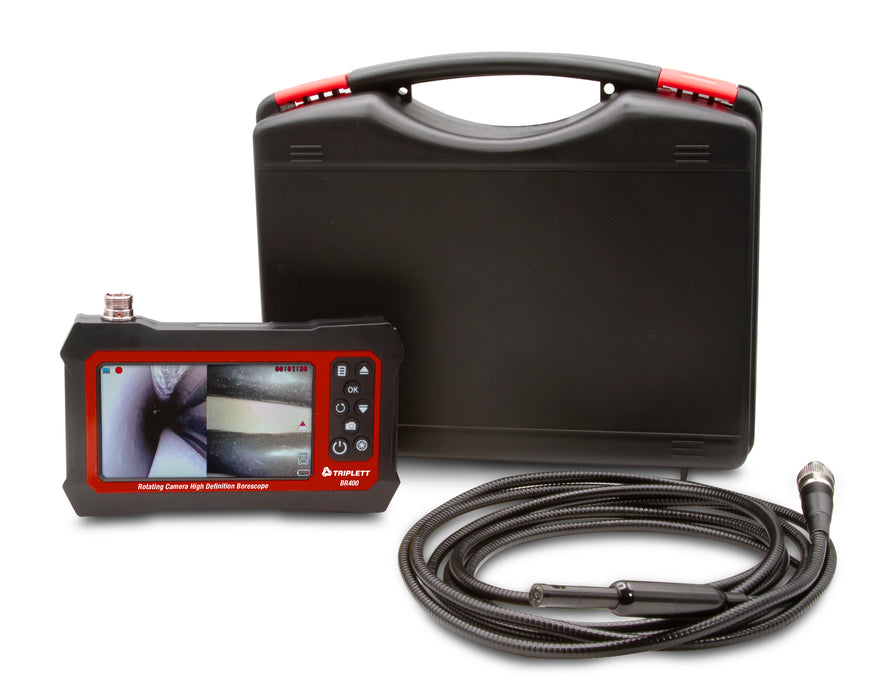

  • Includes Videoscope, 360° Rotating 8mm dual camera probe with 3m cable, SD card, AC Adapter/Charger, USB cable, camera accessories (magnet, hook, protective cap), and carrying case
Specifications
  BR400
Camera Dual (Forward and Side View)
Camera Diameter 8mm with 13.5mm cable diameter
Field of View 90°
Depth of View 1.2 to 4" (3cm to 10cm)
Camera Rotation 360° forward and reverse
Display 4.3" Color (1920 x 1080)
Image Zoom 4X
Storage SD Card included (up to 64GB max)
Still Image Format JPEG (1270 x 1080)
Video Recording Format AVI (1920 x 1080)
Interface USB
Power Recharegable Li-Po Battery
3.7V, 3000mAh, 11.0Wh Rechargeable Li-ion Polymer Single Cell Battery
Dimensions 6.1 x 4 x 1” (155 x 102 x 25mm)
Weight 7.2oz (204g)

Downloads

Datasheet
User Manual

FAQs
  • Q: Would the camera on these be resistant to jet fuel? Could it be submerged in jet fuel without damaging the camera?
    A: Yes, it can be used for inspection inside a jet engine (jet fuel) but if the jet fuel temperature is under 10°C (50°F) then it won’t work for a very long time. Also, after finishing the inspection, we suggest you use some alcohol to clean the camera.
  • Q: What is a 360 Degree Articulating Borescope?
    A: A 360 Degree Articulating Borescope is a versatile inspection tool that combines a full panoramic view (360 degrees) with the ability to articulate or bend the camera head. This feature allows users to navigate around obstacles and inspect hard-to-reach areas, providing a comprehensive view of the internal environment without the need for manual rotation or repositioning.
  • Q: How does a 360 Degree Articulating Borescope work?
    A: The 360 Degree Articulating Borescope uses advanced optical technology and a flexible camera head with multiple articulation points. Users can control the bending or angulation of the camera head using a joystick or other controls, allowing them to steer the camera in all directions while still maintaining a complete panoramic view.
  • Q: Is the 360 Degree Articulating Borescope portable and easy to use?
    A: Yes, 360 Degree Articulating Borescopes are designed to be portable and user-friendly. They are lightweight and equipped with intuitive controls, ensuring ease of use during inspections.
  • Q: Can the 360 Degree Articulating Borescope be used for live inspections or remote viewing?
    A: Yes, some 360 Degree Articulating Borescopes offer live video streaming capabilities, allowing real-time inspections. This feature is beneficial for remote viewing, collaboration, and sharing inspection results with others in real-time.
