Model 310-C Portable Compact Analog Multimeter: 18 Ranges, AC/DC Voltage Measurement to 600V -(3022)
3022-NIST Comes with Certificate of traceability to NIST Standards
Please add 11 business days lead-time for the NIST calibration process
CATEGORY: ANALOG MULTIMETER - VOM
Compact, Precision Analog Multimeter

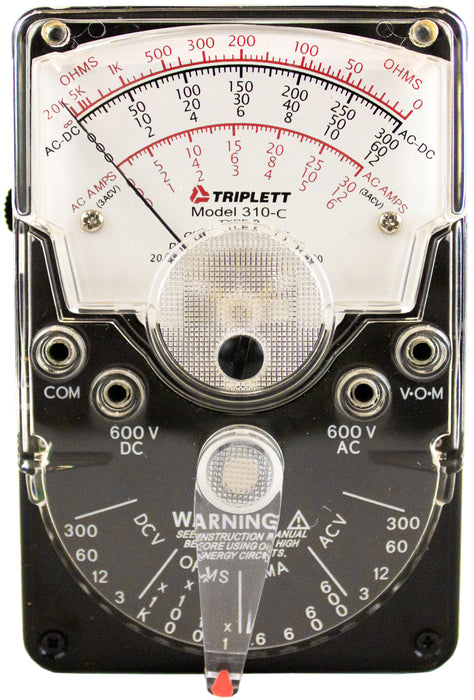

The Triplett Model 310-C is a hand-sized analog multimeter with all of the versatility and performance of larger, more expensive bench-size models.
Versatility and readability have not been sacrificed in order to provide a portable VOM.
Small enough to be carried in your tool box, glove compartment, brief case, or shirt pocket, the Model 310-C features 20,000 ohms per volts DC sensitivity and 15,000 ohms per volt AC.
At a glance:
- 18 Ranges and Functions
- AC/DC Voltage Measurement to 600V
- Drop resistant high impact case
- Fused Resistance ranges
- Includes test leads, alligator clips and batteries
Triplett Solutions for Every Technician
It offers a diode overload protection against damage to the meter movements caused by accidental overloads.
A fuse is used to protect the RX1 range. The fuse and batteries can be easily replaced by removing the back cover.
This model has 18 different ranges that can be easily read on only 3 clearly defined scale areas. A single selector switch allows you to switch easily from range to range and function to function.
Polarity Reversing Switch
A convenient Polarity Reversing Switch electrically reverses the test lead connections, correcting accidental downscale readings and permitting "capacitive kick" readings on the Ohmeter ranges.
Replacement Battery and Fuse Guide
|AC Voltage||3V, 12V, 60V, 300V, 600V (15kΩ/volt)||±4% FS|
|DC Voltage||3V, 12V, 60V, 300V, 600V (20kΩ/volt)||±3% FS|
|DC Current||0.6mA, 6mA, 60mA, 600mA||±3% FS|
|Resistance||20kΩ, 200kΩ, 2MΩ, 20MΩ||±3%|
|Dimensions||2.75 x 1.3 x 4.25" (69.8 x 33 x 108mm)|
|Weight||7.2 oz. (204g)|
- Model 3018 Analog Multimeter
- Test leads
- alligator clips
- (1) 12V A23
- (1) 1.5V size N batteries
For out of warranty repairs or parts on the 3030, 3018, 3022, 3067
please contact: Mobile Instruments at: https://www.mobileinstrumentco.com
