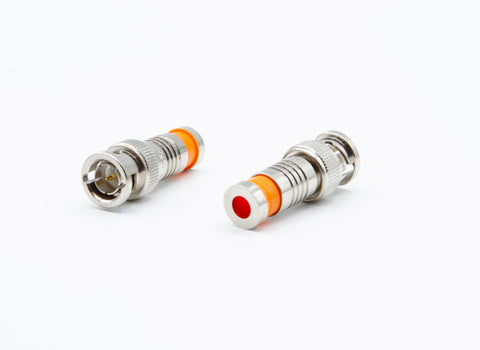

Triplett 75 Ohm Male BNC Compression Connector 302-8240CSTP

75 Ohm Male BNC Compression Connector 10 Pack - (302-8240CSTP)

10 Pack
by GEM by Triplett
SKU 302-8240CSTP
814039002948
Save 52% Save 52%
$19.99
$19.99 - $19.99
$19.99
$9.66
$9.66 - $9.66
$9.66

Extended Lead Time: Up to 11 business days for NIST Calibration


RG58, Belden 8240 BNC Male Compression Seal, Weatherproof, 75 Ohm; CCTV, HD-TVI, CVI, AHD and IP Over Coax 10 Pack

CATEGORY: BNC COMPRESSION CONNECTORS


Features
  • The compression seal design was created to develop a line of products that would be used by the installer of CATV, IP CCTV, and Home Theater Systems, using one assembly procedure and one crimp tool for F, RCA, and BNC connectors. This connector will cost more but there will never be a service call as a result of this connector.
  • Employs a 360 degree plastic insert completely capturing the cable components to the inside walls of the connector. The plastic compression sleeve is tapered so that it will fill all available space to produce a cable retention that is far superior to any and all connector designs.
  • Once the connector is properly installed, it cannot be pulled off --ever!
  • Cable O.D.: .195-.245; Color Code: Orange
  • Use GST-2 Strip Tool; GET-CS00 Crimp Tool

Weight

 5 Ounces
Width 4.25 Inches
Length 0.5 Inches
Height 7.5 Inches
