3 ¼ Digit 4000 Count Pocket Digital Multimeter: CAT II 600V - (2030-C)

Best Seller
SKU 2030
6 14395 00002 8
Original price $31.79 - Original price $31.79
Original price
$31.79
$31.79 - $31.79
Current price $31.79

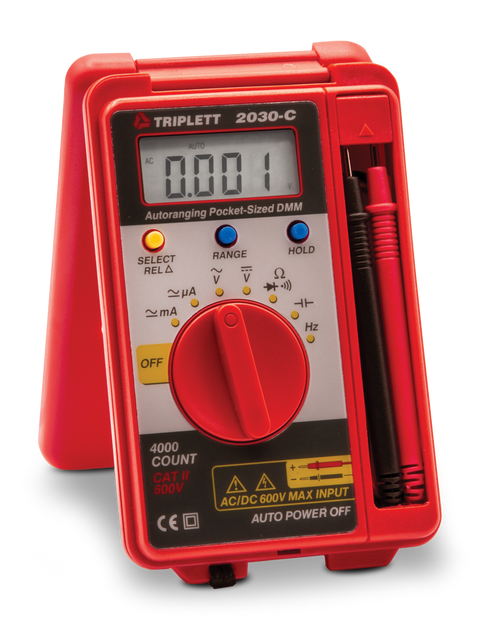

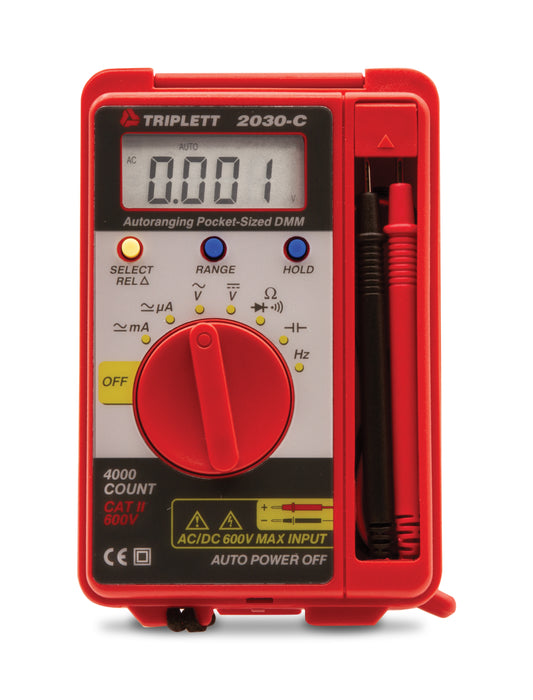

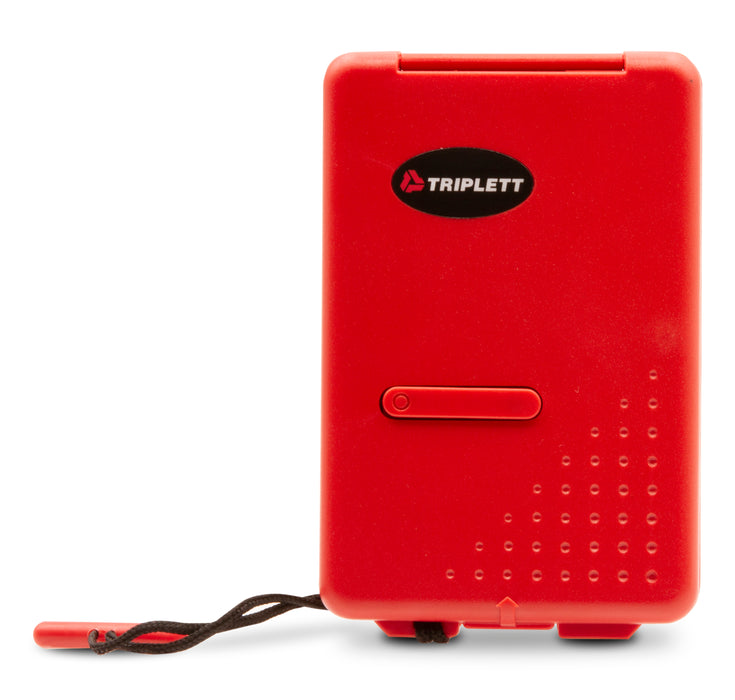

The Triplett Model 2030-C is a 3-3/4 digit (4000 count) pocket sized digital multimeter with a built-in hard case. It offers a variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode Test, Frequency, and Capacitance. Read More >

DESCRIPTION

The Triplett Model 2030-C is a 3-3/4 digit (4000 count) pocket sized digital multimeter with a built-in hard case. It offers a variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode Test, Frequency, and Capacitance. The ABS plastic housing provides impact and drop resistance in an ergonomic design, and the user-friendly Auto Power Off feature helps maximizes battery life. Includes integrated test leads and (2) LR44 batteries.

CATEGORY: DIGITAL MULTIMETER

Features
  • 37 ranges including AC/DC Voltage to 600V and AC/DC Current to 400mA
  • Frequency and Capacitance measurement with diode and continuity tests
  • 3-3/4 Digit, 4000 count display
  • Includes integrated test leads and (2) LR44 batteries with 3 year warranty
Product Overview
Specifications
Specifications Range
Auto/Manual Ranging Autoranging

True RMS/Averaging

Averaging
Basic Accuracy ±0.8%
AC Voltage 0.1mV to 600V
DC Voltage 0.1mV to 600V
AC Current 0.1µA to 400mA
DC Current 0.1µA to 400mA
Resistance 0.1Ω to 40MΩ
Capacitance 0.01nF to 100µF
Frequency 0.01Hz to 5kHz
Duty Cycle 0.1 to 99.9%
Safety Category CAT II-600V
Dimensions 3.2 x 4.8 x 0.8" (81.2 x 122 x 20.3mm)
Weight 4 oz. (113.4g)
Includes
  • Model 2030-C Multimeter
  • Integrated test leads
  • (2) LR44 batteries
