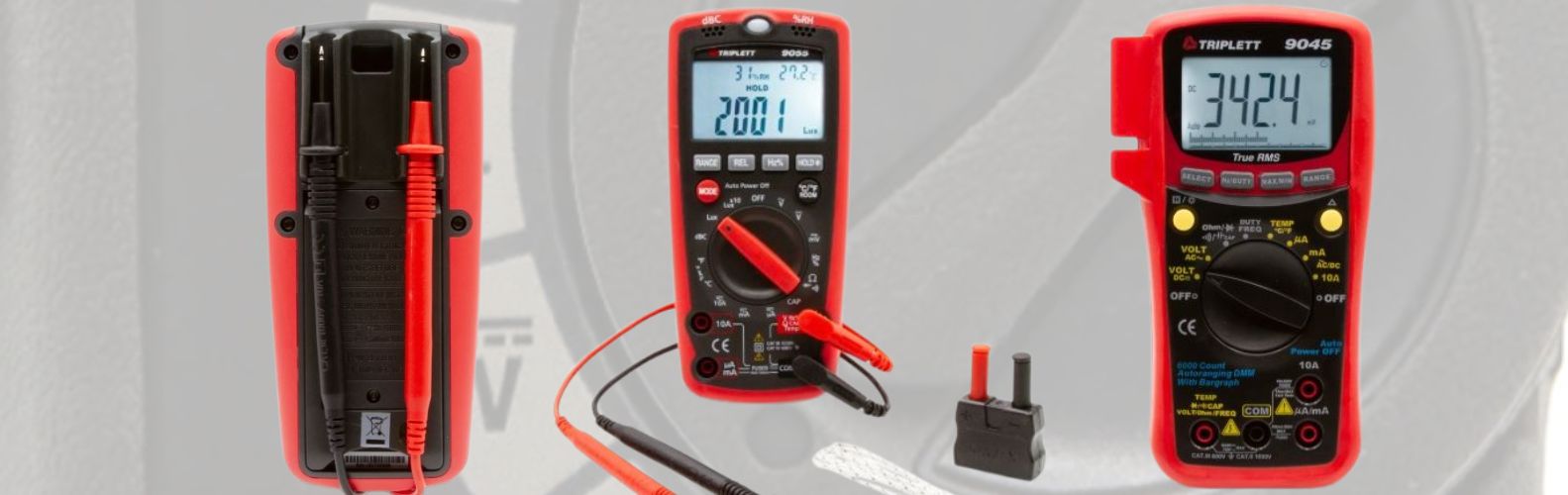

Understanding CAT Ratings in Electrical Test Instruments

Safety is non-negotiable when working with electricity Electrical test instruments like multimeters, clamp meters, and voltage testers are crucial for diagnosing and maintaining electrical systems but not all tools are created equal, especially when it comes to electrical safety standards.

That’s where CAT ratings come in. These ratings are a key part of understanding how well a test instrument can protect users in various environments. Whether you're a technician, engineer, or electrician, understanding CAT ratings is essential for selecting the right tools and ensuring compliance with OSHA electrical safety guidelines and the NFPA 70E standard.

In this blog, we’ll break down what CAT ratings are, how they work, and why they matter for anyone using electrical test instruments.

What Are CAT Ratings?

CAT ratings, or category ratings, are safety classifications developed by the International Electro technical Commission (IEC) under standard IEC 61010. These ratings indicate a test instrument’s ability to withstand voltage transients sudden spikes of energy that commonly occur in different parts of an electrical system.

Think of a voltage transient as a mini lightning bolt within your electrical system. If your meter isn’t designed to handle these spikes, it could fail or cause serious injury.

By understanding CAT ratings, users can select instruments that are rugged enough for the specific environment they're working in, which is critical for adhering to electrical safety standards.

The Four Main CAT Ratings Explained

Electrical environments are categorized into four distinct CAT levels, each representing a different part of the power distribution system and the energy potential of voltage spikes:

1. CAT I

• Description: For low-energy electronic circuits not connected directly to the mains.
• Applications: Battery-powered devices, isolated circuits.
• Examples: Circuit boards, lab instruments, internal electronics.

2. CAT II

• Description: For equipment connected to standard wall outlets.
• Applications: Single-phase appliances and plug-in devices.
• Examples: Office equipment, TVs, power tools.

3. CAT III

• Description: For building infrastructure-level electrical systems.
• Applications: Fixed installations and industrial machinery.
• Examples: Distribution panels, circuit breakers, large appliances.

4. CAT IV

• Description: For utility-level and external connections.
• Applications: Where electricity enters a facility or external circuits.
• Examples: Utility meters, service entrances, transformers.

CAT Ratings vs. Voltage Ratings

While CAT ratings describe the type of environment a test tool is safe for, voltage ratings define the maximum voltage the instrument can handle. Both ratings are crucial and work together to ensure user safety.

For example:

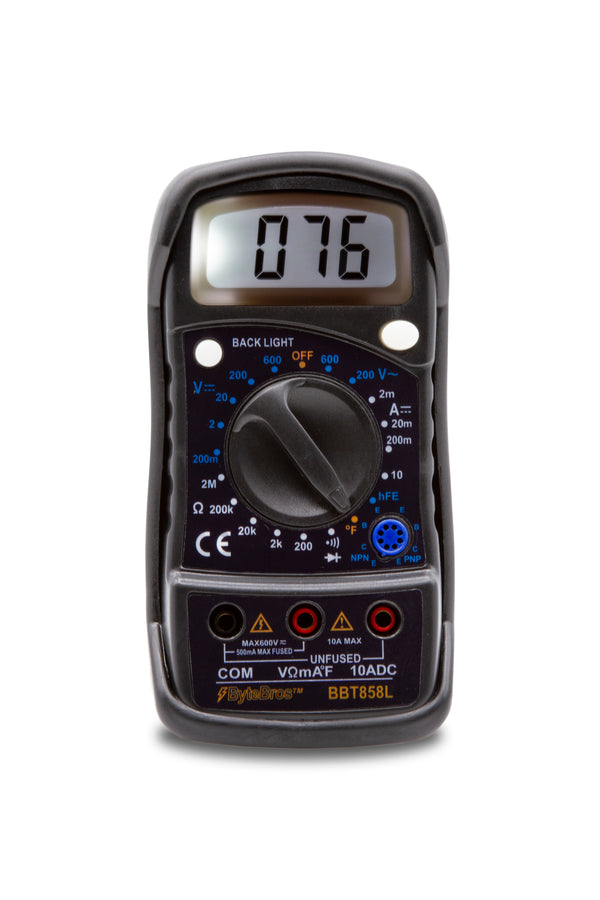

• A CAT III Multimeter (600V) tester is safe for measuring up to 600 volts in a CAT III environment.
• A CAT III Multimeter (1000V) instrument offers higher protection in the same environment or allows use in lower CAT areas with higher voltages.
• Similarly

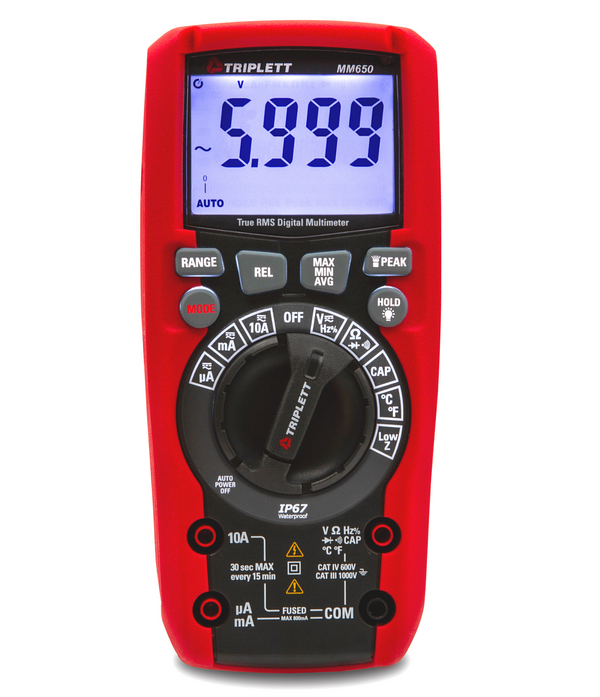

• A CAT IV Multimeter (600V) is safe for measuring up to 600 volts in a CAT IV environment, such as service entrances or utility connections.
• A CAT IV Multimeter (1000V) offers the highest level of protection and can be safely used for measurements at main panels, outdoor conductors, and other high-energy environments, as well as lower CAT-rated areas with voltages up to 1000V.

Important: A high voltage rating alone doesn’t mean a tool is safe in all environments. You must match both the CAT rating and voltage rating to the job.

Why CAT Ratings Matter in Real-World Applications

Using a test instrument with the wrong CAT rating can have dangerous consequences. If a meter rated for CAT II is used in a CAT III or CAT IV environment, it may not withstand the high-energy transients and could catastrophically fail.

Real-World Example:

An electrician using a CAT II meter on a breaker panel (CAT III environment) risks exposure to intense voltage spikes. The tool could explode or arc, leading to burns, electrical shock, or worse.

Such accidents happen even to experienced professionals when OSHA electrical standards and NFPA 70E guidelines are overlooked. That’s why matching the instrument to the environment is not just best practice it’s a lifesaving step.

How to Choose the Right Electrical Test Instrument

Follow these steps to ensure you're using the right tool:

1. Identify the Electrical Environment

• CAT I: Internal electronics or low-energy circuits.
• CAT II: Household appliances or plug-in devices.
• CAT III: Distribution boards and industrial installations.
• CAT IV: Service entrances or outdoor conductors.

2. Determine the Voltage Level

• Know the highest voltage the tool might encounter in that setting.

3. Match the CAT and Voltage Ratings

• Choose a tool that meets or exceeds both the required CAT level and voltage rating.

4. Avoid Common Mistakes

• Don’t assume a higher voltage rating is safe in all environments.
• Never use low-CAT rated tools in high-energy areas.

CAT ratings are more than just labels they're vital indicators of safety. They ensure that your electrical test instruments can handle the real-world hazards of the environments in which you work.

Complying with NFPA 70E standards and OSHA electrical safety guidelines means selecting tools that offer protection not just in terms of voltage, but in terms of transient energy levels too.

Before you test, check both the voltage and CAT rating. And when in doubt, go with the higher-rated tool it’s your safety on the line.
