Get Introduced to Ethernet Cable Termination Essential for Security Systems

Security is paramount across industries to safeguard personnel, assets, and sensitive information. Investing in security systems helps mitigate risks associated with cybercrimes or loss of data due to any reason. Higher versions of Ethernet cables are crucial for robust security systems, ensuring seamless data transmission, minimal signal loss, and reduced interference susceptibility. To achieve the right level of data integrity and security, cables are connected to various devices such as switches and routers using the right connector types. First, the cables need to be terminated using the right tools and then attached to a connector such as RJ45, BNC, and so on. These cables are then connected to the concerned devices in the network. Are you intrigued about Ethernet cable termination and its role in building robust security networks? This post answers the same in detail.

Significance of Ethernet Cable Termination in Security Systems

Ethernet cable termination involves connecting the ends of cables to networking devices, such as switches, routers, cameras, access points, and more. A secure and reliable stop is paramount for maintaining signal integrity, preventing potential vulnerabilities, minimizing data loss, and more. By using quality components and following best practices, experts can ensure reliable connections to fulfill the demands of modern security environments. Cables need to be terminated in the right manner and at appropriate lengths using certain crimping tools. This is essential for seamless data transmission within a security system. Also, loosely cut cables connected with cameras or any other devices may lead to signal losses, network instability, latency issues, and connectivity issues. Before getting into how to perform Ethernet cable termination, it is important to know what tools and equipment are required. The next section describes the same in detail.

Tools and Equipment for Ethernet Cable Termination

Having the right tools and equipment ensures successful Ethernet cable termination. Here are some important ones.

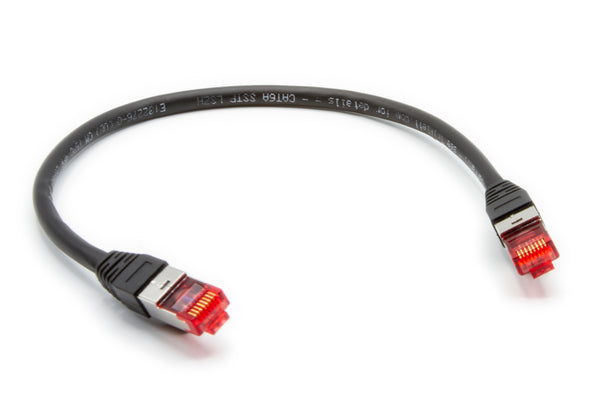

Ethernet Cables: The cables used for any network infrastructure must be high-quality. The cables must match the challenging demand of the intended application and meet specific industry standards. Cat5e, Cat6, and Cat6a are commonly used cables for performance and bandwidth capacity. Cat5e Ethernet cables are ideal for small and residential business applications, while Cat6 and Cat6a are used for long-distance transmissions and high-speed networks.

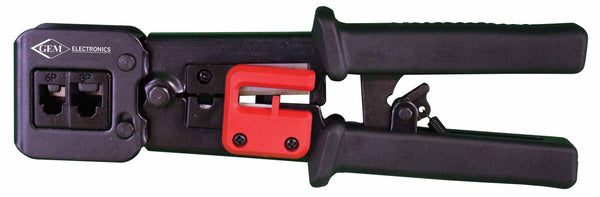

Crimping Tools: This is an important tool used for Ethernet cable termination. It comes in different designs and types. However, a ratcheting crimper is widely used for consistent and reliable termination. Select a crimper that supports the type of connectors you're using and offers features like adjustable crimping force and built-in cable cutter.
RJ45 Connectors: RJ45 connectors are designed to provide a secure and reliable connection between Ethernet cables and ports of networking devices. They ensure proper alignment and contact between the cable’s twisted pairs and the connector’s pins, facilitating continuous data transmission with minimal signal loss. Choose quality connectors that match the category of the Ethernet cable being used.
Cable Testers: They help identify wiring faults, shorts, and open circuits, ensuring terminations meet the required industry standards and perform reliably. Select a cable tester, keeping the category of Ethernet cables in mind. Cable testers should come with features like continuity testing, wire mapping, and length measurement.
Wire Strippers: They are designed to remove the outer layer of Ethernet cables. Thus, the inner conductive wires are exposed for connection. Wire strippers should come with adjustable cutting depths to prevent damage to the inner conductors. It's essential to strip the cable jacket carefully to avoid cutting the inner wires, which can compromise the integrity of the cable.

Ethernet Cable Termination Process

Always refer to the user manual offered by the tool manufacturer to know the right termination process. It is important to follow proper steps for cable termination.

The process begins by stripping the outer layer from the cable end, exposing the inner twisted pairs.
Next, untwist the twisted pairs and straighten them to ensure easy integration into the connector.
As per the T568A or T568B wiring standard, arrange the wires properly, ensuring compatibility and consistency throughout the termination process. T568A or T568B standards define the arrangement of the eight color-coded wires within the connector.
Once done with the wire arrangement, insert the wires into the RJ45 connector. Make sure each wire aligns with its respective pin.
Now, place the connector into the crimper and apply adequate pressure to crimp it securely onto the cable.
Use a cable tester to verify the integrity of the connection. Test for proper wiring, open circuits, and the integrity of the connection.

Best Practices for Ethernet Cable Termination

Adhere to the following practices to ensure optimal reliability and performance.

Quality Components: A reliable Ethernet cable termination can be achieved using high-quality cables, connectors, and tools.
Proper Cable Management: Proper cable management is important to organize and protect terminated cables. This reduces the risk of signal interference and risk of damage.
Regular Maintenance: Periodic inspection and testing of terminated connections is important to identify and address any issues promptly. Replace damaged cables or connectors as needed to maintain system integrity.

Ethernet cable termination holds immense significance in security system integration. By mastering the termination process and adhering to best practices, professionals ensure secure and robust connections for safeguarding personnel and assets. If you want to invest in quality Ethernet cable termination tools for your security systems, it is important to source them from a reliable supplier like Triplett. With years of market presence, the company offers cable termination tools in different sizes and grades. Contact the team at Triplett today in case you require any further information regarding their cable termination tools.
