Product Information

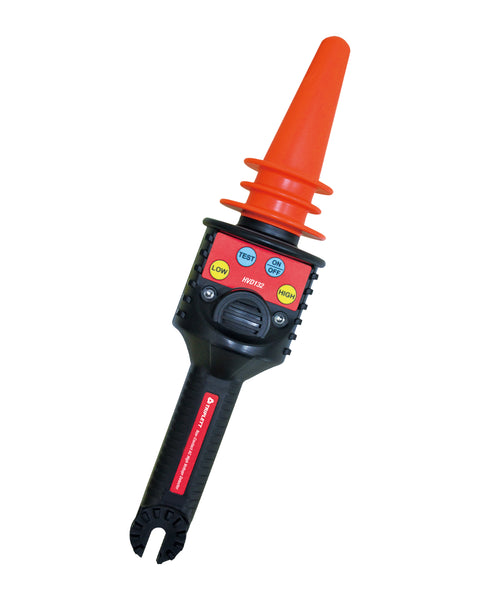

  • The Triplett Model HVD132 is a reliable and versatile non-contact high AC voltage detector designed for various electrical applications.
  • It features two voltage ranges, allowing users to check and detect live high AC voltage cables up to 132kV or perform non-contact detection of low AC voltages (>50V) in cables, wall outlets, circuit breakers, and more.
  • The Triplett Model HVD132 Non-Contact High AC Voltage Detector is an essential tool for electricians and professionals working with electrical systems, ensuring safety and accurate voltage detection in a wide range of applications.

CATEGORY: AC VOLTAGE DETECTOR

  • High AC Voltage Detection:

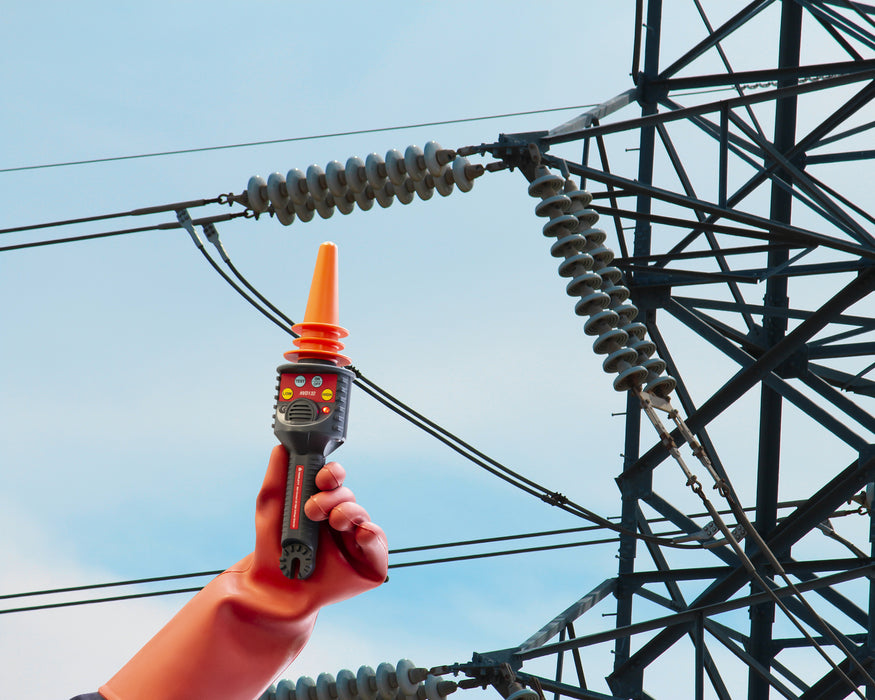

    • Capable of checking and detecting live high AC voltage cables up to 132kV.
  • Two Voltage Ranges:
    • Offers two voltage ranges - High (1.5kV to 132kV) and Low (50V to 1.5kV) for versatile voltage detection.
  • Non-Contact Voltage Detection:
    • Provides non-contact detection of low AC voltages (>50V) in various applications.
  • Circuit Test Function:
    • Includes a Circuit Test function to ensure proper operation before testing live wires, enhancing safety.
  • Audible and Visual Alarms:
    • Features audible and visual alarms that increase in frequency and become continuous at the voltage source, providing clear alerts.
  • Hot Stick Mountable:
    • Designed to be hot stick mountable for high voltage use (hot stick not included).
  • Complete Package:

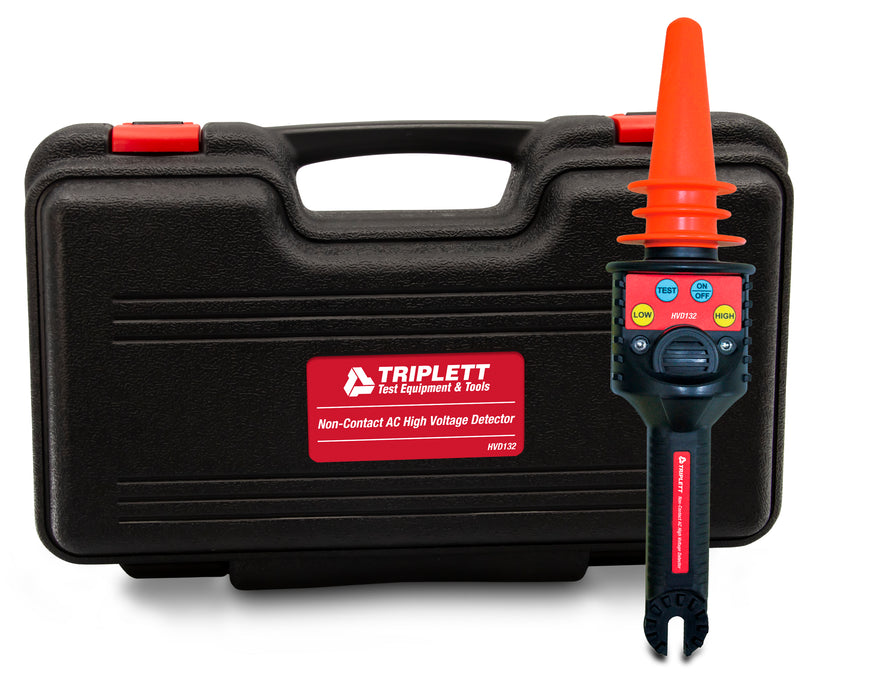

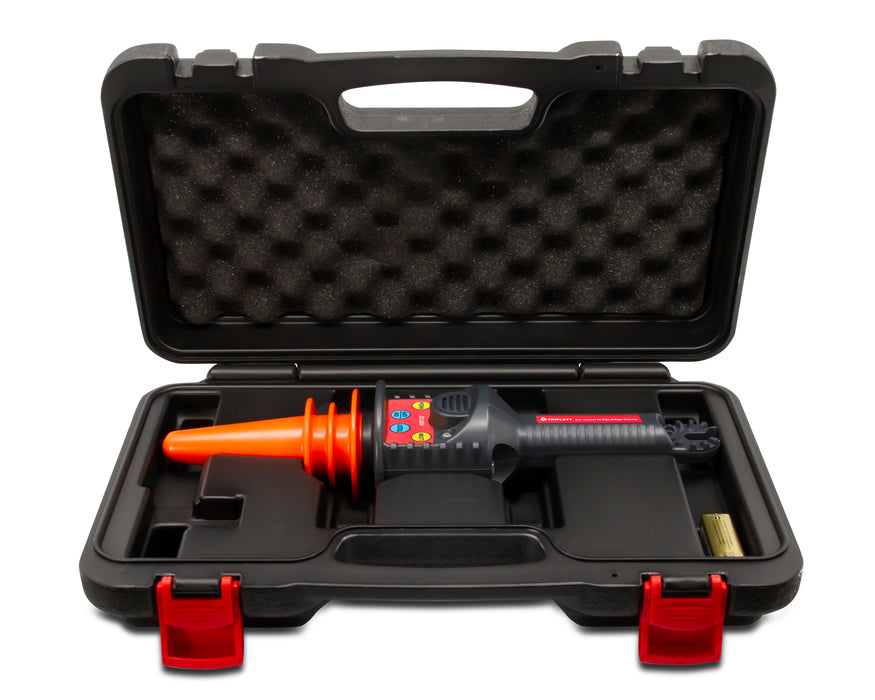

    • The voltage detector includes a 9V battery and a convenient carrying case for ease of use and storage.
  • Warranty:
    • Backed by a 1-year warranty, offering confidence in its performance and reliability.
  HVD132
AC Voltage Range Low: 50V to 1.55kV
High 1.5kV to 132kV
AC Frequency Range 50/60Hz
Response Time Instantaneous
Duty Cycle Continuous
Audible Alarm Buzzer increases from intermittent to continuous
Visual Alarm 2 Red LEDs blink faster as you get closer
Power 9V Battery
Dimensions 12.5 x 3 x 2.8" (318 x 75 x 71mm)
Weight 8oz (227g)
Datasheet
User Manual (PDF)
While Triplett doest sell the actual hotstick just the Voltage detector - We have found a universal Hotstick on Amazon that would be a good fit for the HVD132: https://amzn.to/3UWHryY
