wire locator ctx590a triplett

Wire Locator Kit with Inductive Toner Probe and Tone Generator : Traces Various Wire Types - (CTX590A)

by Triplett
SKU CTX590A
614395002138
$98.99 - $98.99
$98.99
$98.99 - $98.99
$98.99

Extended Lead Time: Up to 11 business days for NIST Calibration

Product Information

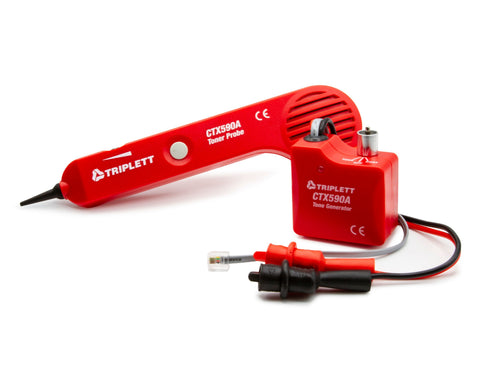

The Triplett CTX590A ProTone Wire Locator Kit features a powerful tone generator and probe. The CTX590 functions as a high quality wire locating tool that uses an inductive probe to sense a tone placed on the wires by its associated tone generator. The tone generator provides RJ11, RJ45 and insulated alligator clip connections. The Red/Green LED on the probe indicates continuity, voltage, and polarity. The probe also includes a sensitivity control. The CTX590A can be used for tracking down short circuits, telephone central office connections, and other wire locating applications. Includes (2) 9V batteries, RJ45, RJ11, Alligator clip connectors and case. 1-year warranty.

CATEGORY: TONER PROBE KITS

  • Traces various types of cables including: twisted pair, LAN, multi-conductor, telephone/alarm and unpowered electrical wire
  • Loud tone with sensitivity control and tone LED for controlled operation
  • Additional tests: voltage, polarity and continuity
  • RJ11, RJ45 and insulated alligator clips for connection; Includes (2) 9V batteries and pouch; 1 year warranty
  CTX590A
Input Voltage Max: 24VAC
Power 9V Batteries for Toner and Probe
Dimensions Toner: 2.3 x 2.3 x 1.35” (58.5 x 58.5 x 34.3mm)
Probe: 9 x 2.25 x 1” (228 x 57 x 25.4mm)
Weight 9.5oz (270g)
Datasheet
User Manual (PDF)
Unfortunately, we do not sell replacement battery packs for the HDCM3 as the battery is soldered into the unit. However, you can send your HDCM3 to us for repairs. Please use the RMA (Return Merchandise Authorization) form [Triplett RMA Form] to proceed with the return.
For the Ring outdoor camera, they're primarily wireless. Typically, you'd require an NVR (Network Video Recorder) to first establish a connection with the camera. Afterward, you can connect the HDCM3 to the NVR for it to function. However, if the camera comes with a BNC port, you can directly link the camera to the HDCM3 without needing an NVR.
You may also use the BNC for video.
A 1080p HD monitor for security cameras ensures a high-definition display of video footage. It offers a resolution of 1920 x 1080 pixels, allowing surveillance personnel to examine the footage with greater clarity and precision. Its high picture quality allows for more accurate judgments and informed decision-making based on the visual information captured. Irrespective of whether it is a spacious outdoor environment or a compact indoor space, opting for a 1080p HD monitor guarantees that every pixel of the video is displayed with utmost accuracy and detail.
1080p HD monitors offer significant advantages for video surveillance and security systems. With higher resolution, these monitors provide enhanced clarity, allowing for sharper and more detailed images from security cameras. This is crucial for accurate identification of individuals and objects in surveillance footage. The greater visibility and wider field of view enable monitoring of larger areas and capturing more details, while improved facial recognition aids in detecting potential threats or unusual activities. The smooth video playback and remote access compatibility add to the efficiency and flexibility of surveillance operations. Overall, 1080p HD monitors prove to be indispensable tools, optimizing video surveillance and enhancing security system performance.
Any security camera that is designed to produce video at a resolution of 1080p can be effortlessly connected to a high-definition monitor with the same resolution. This applies to both wired and wireless cameras, providing users with flexibility in their surveillance system setup.
The effectiveness of your surveillance system can be greatly influenced by the size of the monitor you choose to view footage captured. Selecting the right monitor size depends on various factors, including but not limited to personal preference, the size of the viewing area, viewing distance, and the level of detail needed in the footage. For most applications, a 24-inch monitor is usually opted and is considered to be an ideal choice. This size you choose not only ensures a comfortable viewing experience but also allows for easy viewing of important and minute details in the footage.
When choosing a 1080p HD monitor for security camera, there are several features to consider. Here are some of the key features to look for: resolution, color accuracy, size of the monitor, screen technology used in the monitor, contrast, viewing angle, and connectivity.
Yes, you have the option to use a standard computer monitor for viewing security camera footage. However, ensure that the computer monitors you use to view the footage are equipped with an HDMI or VGA input port and can handle a resolution of 1080p.
Yes, you can connect multiple security cameras to a single 1080p HD monitor as long as the monitor has enough input to support all the cameras. Ensure that the 1080p HD monitor you choose has enough available video inputs to connect all of your security cameras. Most monitors have multiple HDMI ports, but it is always recommended to verify the specifications before making a purchase.
There is no requirement for specialized software to view security camera footage on a 1080p HD monitor. The majority of cameras produce their video feed in a standard format that can be easily showcased on any monitor equipped with an HDMI or VGA input port.
