TDR/Cable Tester - (LVPRO10)

TDR/Cable Tester - (LVPRO10)

Best Seller
Free Shipping*
by Triplett
SKU LVPRO10
614395004958
983.00 NIS - 983.00 NIS
983.00 NIS
983.00 NIS - 983.00 NIS
983.00 NIS

Extended Lead Time: Up to 11 business days for NIST Calibration

Product Information

  • The Triplett Model LVPRO10 TDR/Cable Tester offers a comprehensive solution for LAN installers and repair technicians.
  • It tests and traces both twisted pair (CAT5E/6/6A/8) and coax cables.

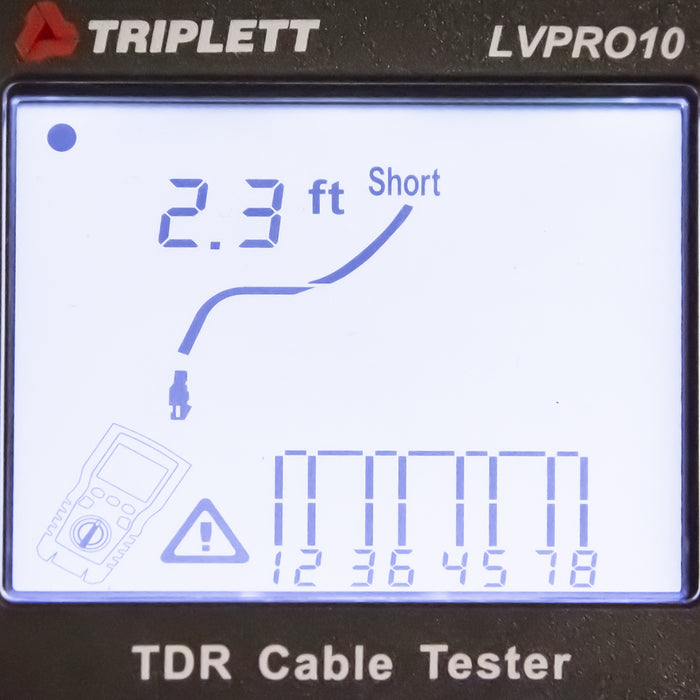

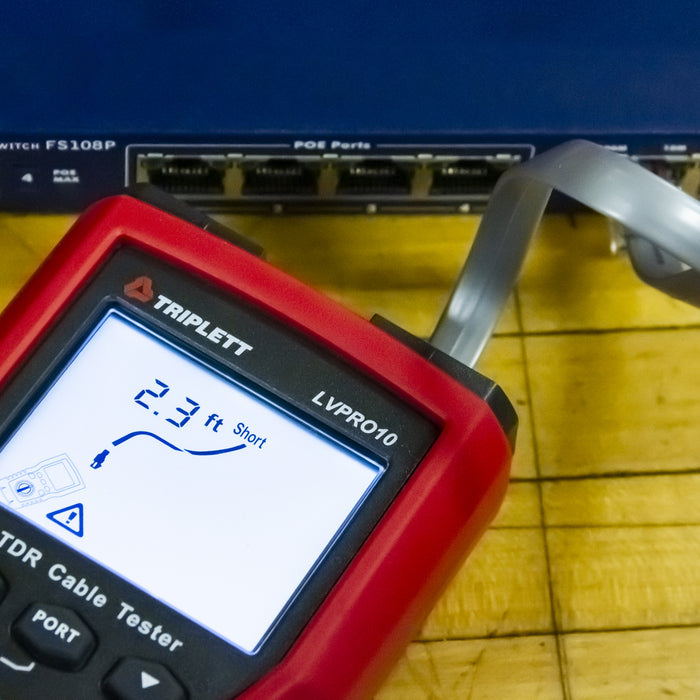

  • Detects cable length and checks twisted pair continuity, opens/shorts, reversals, and split pairs.

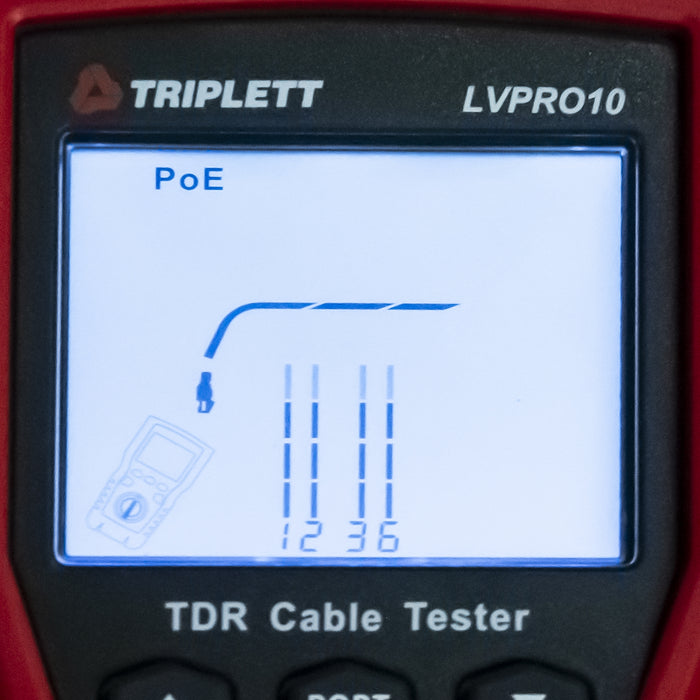

  • Detects PoE presence and performs an Ethernet port test.
  • Features a 2.8" backlit graphical LCD, built-in RJ11, RJ45, and coax ports for optimum visibility and easy connection.

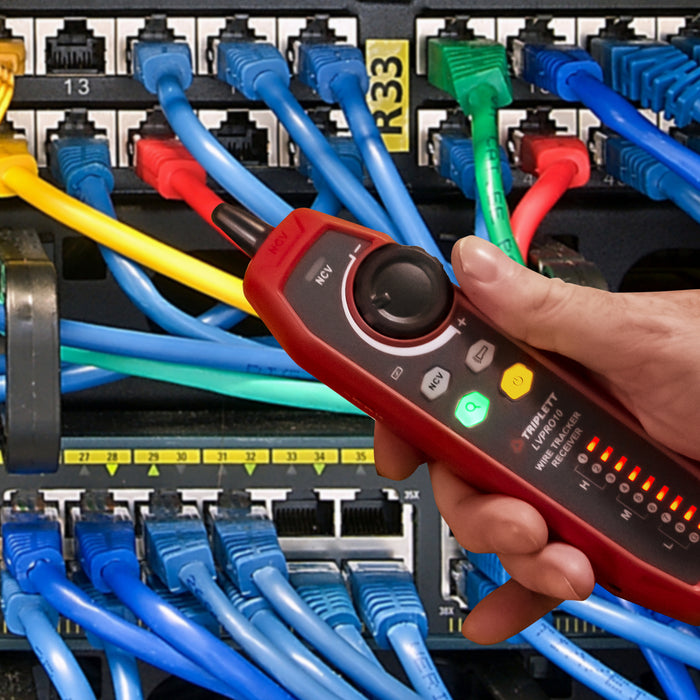

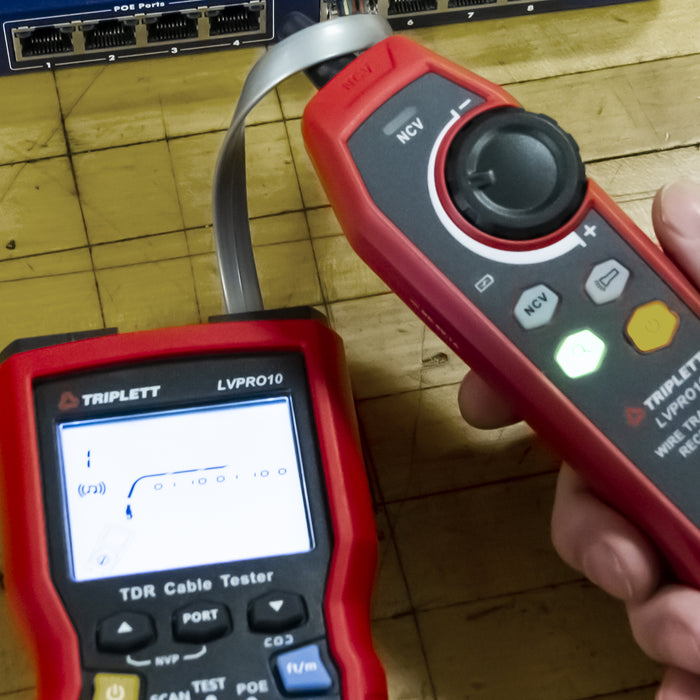

  • Uses tone mode to trace cables effortlessly.
  • Features an auto power-off function and 70VDC input protection for added convenience and safety.
  • The package includes a tracer probe with a built-in NCV Detector (>40V), flashlight, wiremap indicator lights, a low battery indicator, an earphone jack for noisy environments, and more.

CATEGORY: LOW VOLTAGE TOOLS

  • Twisted Pair and Coax Cable Testing: Test and trace CAT5E/6/6A/8 twisted pair and coax cables efficiently.
  • Cable Fault Identification: Identify continuity, opens/shorts, reversals, and split pairs in twisted pair cables.
  • PoE Detection: Detect PoE presence and identify whether it's endspan or midspan (802.3AF, 802.3AT, 802.3BT).
  • Ethernet Port Test: Perform thorough Ethernet port tests for reliable networking.
  • Cable Tracing: Use the tone mode to trace cables effortlessly.
  • 2.8" Backlit LCD: Enjoy clear visibility with a 2.8" backlit graphical LCD.
  • Built-In Ports: Hassle-free connectivity with built-in RJ11, RJ45, and coax ports.
  • Comprehensive Tracer Probe: Includes a tracer probe with built-in NCV Detector (>40V), flashlight, wiremap indicator lights, low battery indicator, and earphone jack.

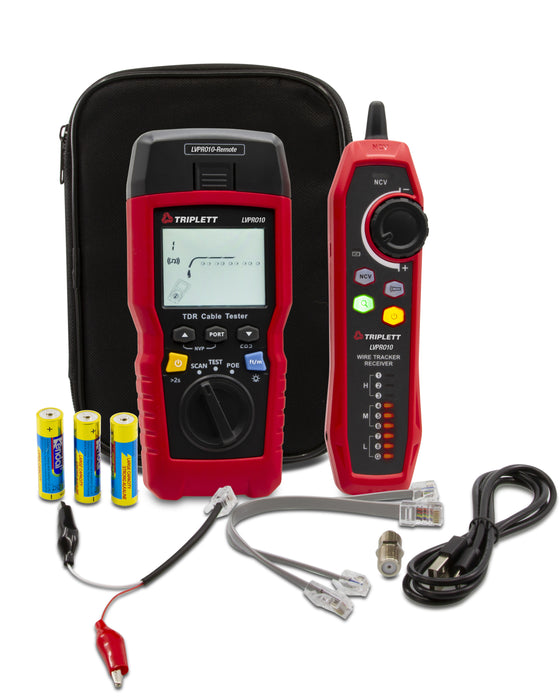

  • Includes: tracer probe with charging cable, remote adapter, RJ45 and RJ11 adapter cables, RJ11 cable with alligator clips, F- to F-connector adapter, (4) AAA batteries, and carrying bag
  LVPRO10
Cable Types UTP, FTP and SSTP twisted pair
50Ω, 75Ω, 93Ω coax cable
Cable Length Test Range: 1640ft (500m) Resolution: 1ft (0.33m)
Accuracy: ±4% or 2ft (0.6m)
POE detection POE standards: 802.3AF, 802.3AT, 802.3BT
Ethernet Port Test Yes
Cable Location Yes
Port Blink Yes
Power (4) AAA Batteries
Tester Dimensions 7.1 x 3.1 x 1.5” (181 x 80 x 39mm)
Weight 12.7oz (360g)
Probe Dimensions 7.8 x 1.9 x 1.3” (197 x 48 x 34mm)
Weight 4.5oz (127g)
  • Includes tracer probe with charging cable, remote adapter, RJ45 and RJ11 adapter cables, RJ11 cable with alligator clips, F- to F-connector adapter, (4) AAA batteries, and carrying bag
Datasheet
User Manual (PDF)
Use the "Ping" feature - This will list all the IP addresses on the network which you are connected to. (User manual section 5.2 ping and 5.3 IP search.
A network testing probe is a specialized tool used in conjunction with a network cable tester to accurately identify and locate network cable faults and connectivity issues in data networks.
Using a network testing probe allows for faster and more precise identification of cable faults, reducing downtime and improving network reliability by facilitating efficient troubleshooting.
Network testing probes are generally designed to be compatible with various network cable testers, but it is essential to ensure compatibility with the specific cable tester model.
Typically, network testing probes are designed to work with copper cables. For fiber optic cable testing, specialized probes and testers are required.
