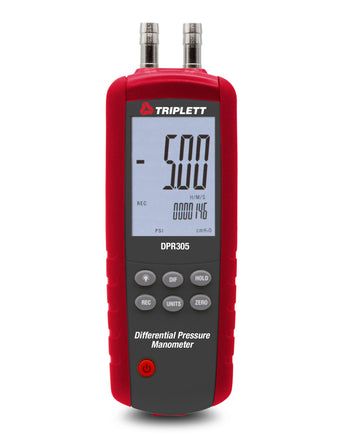

Differential Pressure Manometer, 5psi - (DPR305)

Differential Pressure Manometer, 5psi - (DPR305)

Free Shipping*
by Triplett Test Equipment & Tools
SKU DPR305
614395003272
$342.00 - $616.00
$342.00
$342.00 - $616.00
$342.00
Version: Standard

Extended Lead Time: Up to 11 business days for NIST Calibration

Product Information

  • The Triplett Model DPR305 Differential Pressure Manometer measure gauge and differential pressure to ±5psi.
  • Use one input to measure the gauge pressure of a single source.
  • Use both inputs to measure the differential pressure between two points of a single source or between 2 sources revealing which input has the higher pressure and the difference between them.
  • Measurements are viewed on the large backlit LCD display in 11 units of measure.
  • Min/Max/AVG records highest, lowest and average readings with relative time stamp.
  • Data Hold momentarily freezes the displayed reading for easy viewing.
  • It features convenient quick‐disconnect fittings, zero adjust, offset function, and auto power off with disable.
  • Includes (3) AAA batteries, USB cable (for power only), sample tubing, and pouch case.
  • 1-year warranty.

DPR305-NIST comes with Certificate of Traceability to N.I.S.T.
Please add 11 business days lead-time for the NIST calibration process



CATEGORY: PRESSURE MANOMETERS

  • Measure gauge and differential pressure
  • Convenient quick‐disconnect fittings
  • 11 units of measure
  • Min/Max/AVG records highest, lowest and average readings with relative time stamp
  • Data Hold momentarily freezes the displayed reading for easy viewing
  • Large backlit LCD display
  • Zero adjust and Offset functions
  • Auto Power Off with disable
  • 4 Digit LCD with Backlight
  • Fits ¼” and ½” ID Flex Tubing
  • 1 year warranty
  • Includes (3) AAA batteries, USB cable (for power only), sample tubing, and pouch case
  DPR302 DPR305
inH2O 55.40inH2O (0.01inH2O) 138.4inH2O (0.1inH2O)
psi 2.000psi (0.001psi) 5.000psi (0.001psi)
mbar 137.8mbar (0.1mbar) 344.7mbar (0.1mbar)
kPa 13.79kPa (0.01kPa) 34.47kPa (0.01kPa)
inHg 4.072inHg (0.001inHg) 10.18inHg (0.01inHg)
mmHg 103.4mmHg (0.1mmHg) 258.6mmHg (0.1mmHg)
ozin2 32.00ozin2 (0.01ozin2) 80.00ozin2 (0.01ozin2)
ftH2O 4.612ftH2O (0.001ftH2O) 11.53ftH2O (0.01ftH2O)
cmH2O 140.6cmH2O (0.1cmH2O) 351.5cmH2O (0.1cmH2O)
kgcm2 0.140kgcm2 (0.001kgcm2) 0.352kgcm2 (0.001kgcm2)
bar 0.137bar (0.001bar) 0.345bar (0.001bar)
Accuracy ±0.3% FS ±0.3% FS
Max. Pressure 10psi 20psi
Power (3) AAA batteries or USB (3) AAA batteries or USB
Dimensions 7.2 x 2.4 x 1.1" (182 x 62 x 28mm) 7.2 x 2.4 x 1.1" (182 x 62 x 28mm)
Weight 8.4oz (237g) 8.4oz (237g)
