DESCRIPTION

The Triplett Model EM300 10-in-1 Environmental Meter measures Air Temperature, Humidity, Type K Temperature, Wet Bulb, Dew Point, Heat Index, Air Velocity, Air Flow, Wind Chill, and Light. Readings are displayed on the dual backlit LCD that automatically reverses when taking Light measurements. It features a concise and compact button arrangement for easy one-hand operation. The low-friction ball bearing mounted wheel design provides high accuracy and the high precision humidity sensor has a fast response time. Temperature readings are °F/°C switchable. Min/Max records highest and lowest readings. Data Hold freezes the reading on the display. Auto power off with disable conserves battery life. The built-in tripod mount can be used to free-up your hands when taking measurements over an extended amount of time. Includes Type K Temperature bead probe, (3) AAA batteries, and wrist strap. 1-year warranty.

CATEGORY: AIR FLOW METER ANEMOMETERS , DIGITAL LIGHT METERS, HUMIDITY METERS

Features

Measures Air Temperature, Humidity, Type K Temperature, Wet Bulb, Dew Point, Heat Index, Air Velocity, Air Flow, Wind Chill, and Light
High precision humidity sensor with fast response time
Low-friction ball bearing mounted wheel design provides high accuracy
Dual backlit display automatically reverses when taking Light measurements
°F/°C switchable
Concise and compact button arrangement for easy one-hand operation
Min/Max records highest and lowest readings
Data Hold freezes the reading on the display
Auto power off with disable conserves battery life
Tripod mount
Includes Type K Temperature bead probe, (3) AAA batteries, and wrist strap

Specifications

	EM300
Air Temperature	32 to 122°F (0 to 50°C)
Accuracy	±2.5°F/1.2°C
Relative Humidity	10 to 95%RH
Accuracy	±4%RH
Type K Temperature	-58 to 2372°F (-50 to 1300°C)
Accuracy	±(0.4% rdg + 1.8°F/1°C)
Wet Bulb	22.2 to 120°F (-5.4 to 49°C)
Dew Point	13.5 to 120°F (-25.3 to 49°C)
Heat Index	32 to 212°F (0 to 100°C)
Resolution	0.1°F/°C; 0.1%RH
Light Meter	0 to 1860 Fc (0 to 20,000 Lux)
Light Accuracy	±5%
Air Velocity	80 to 3837 ft/min (1ft/min)
	0.4 to 20.00m/s (0.1m/s)
	1.4 to 72.0km/h (0.1km/h)
	0.9 to 44.7mph (0.1mph)
	0.8 to 38.8 knots (0.1 knots)
Air Velocity Accuracy	±3% FS
Air Flow	0.847 to 1,271,300CFM (0.001CFM)
	0.024 to 36,000CMM (0.001CMM)
Wind Chill	15 to 112°F (-9.4 to 44.2°C)
Power	3 AAA Batteries
Dimensions	4.47x 1.8 x 1.2" (120 x 45 x 20mm)
Weight	4.6oz (130g) w/o battery

Downloads

Datasheet
User Manual

Description

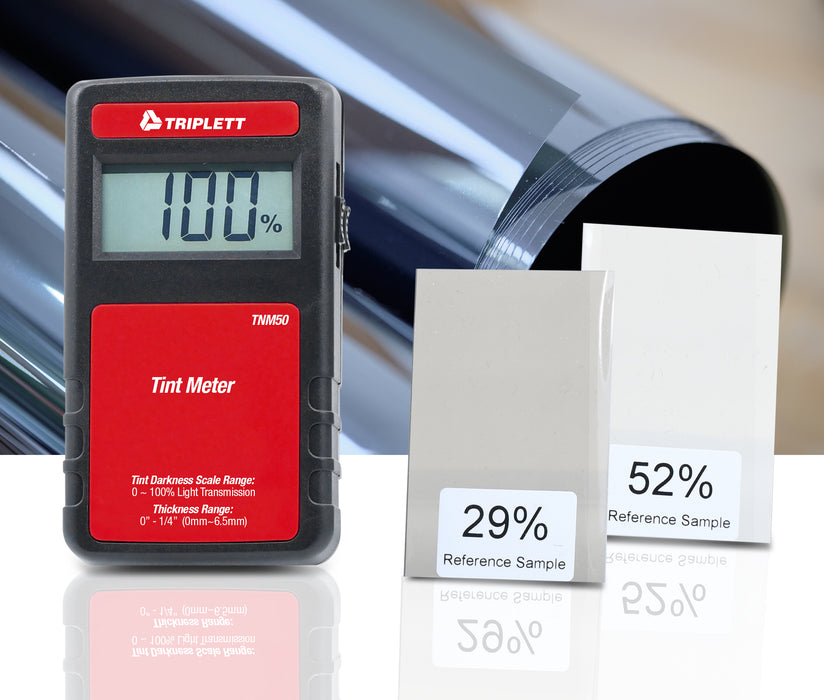

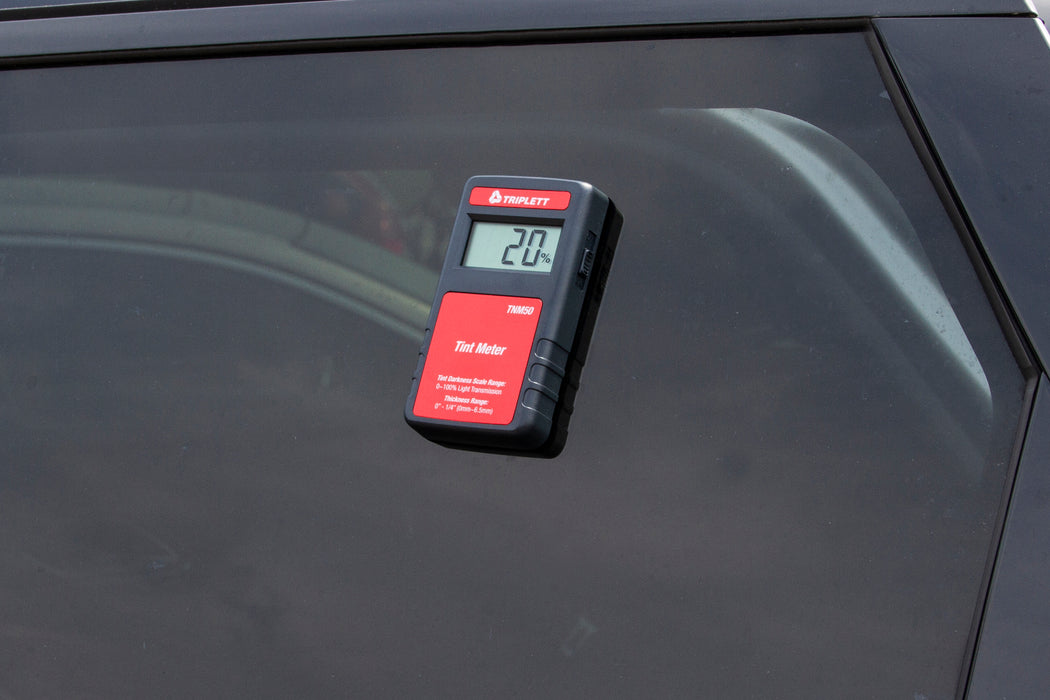

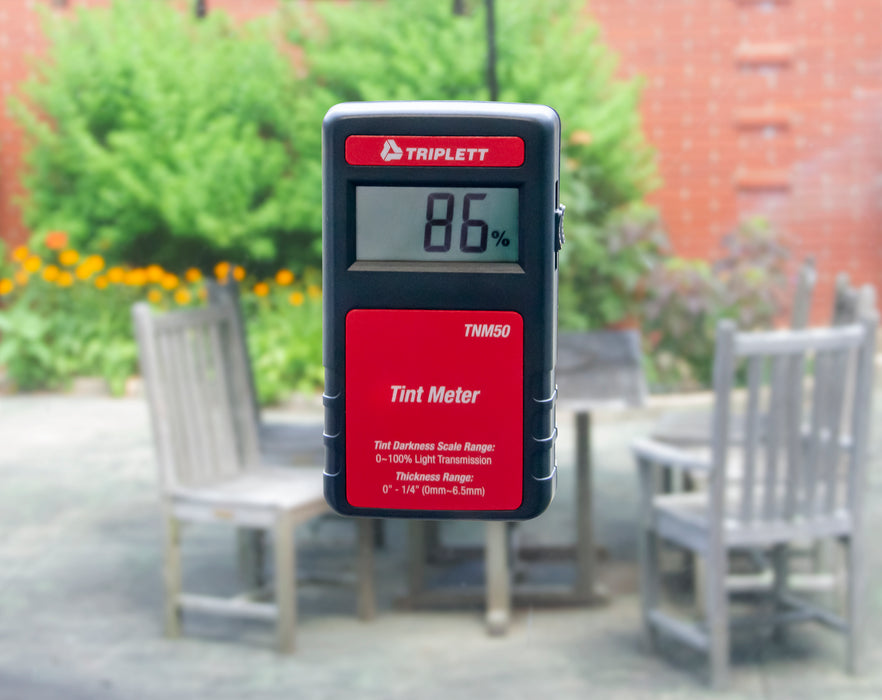

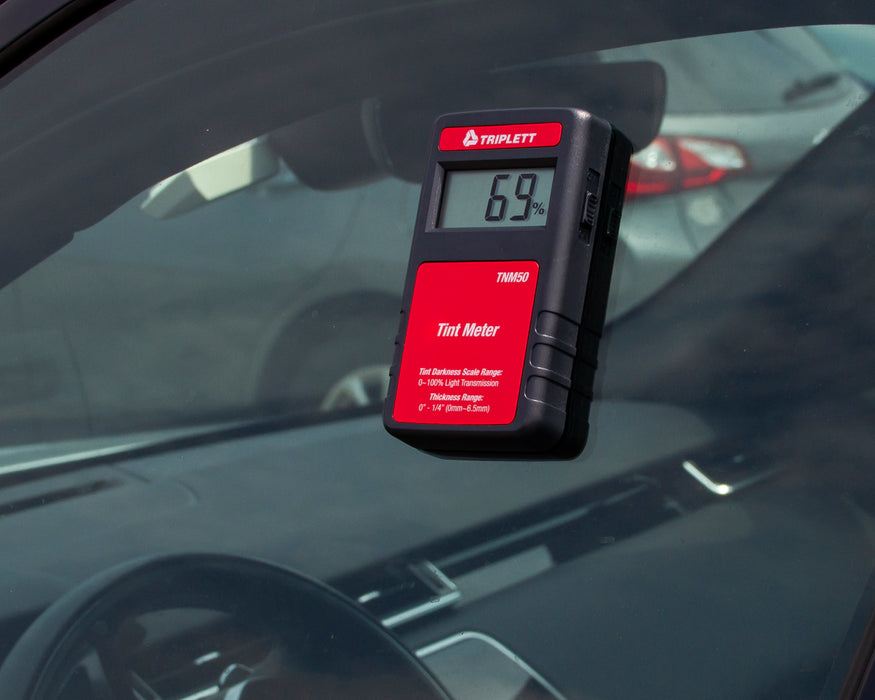

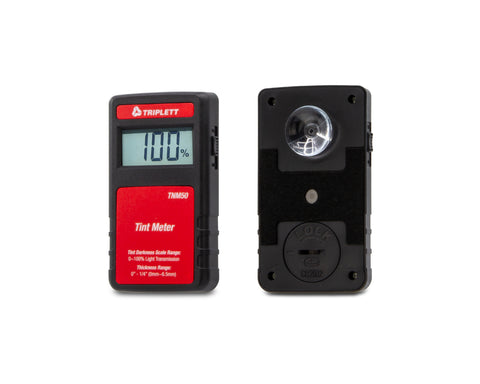

The Triplett Model TNM50 Tint Meter measures the transmittance of light for use on automotive windows, insulation paper, organic material, painting, coating material, film, glass, and plastic sheet. It can also measure the sun blocking capabilities of window curtains. It has a 0 to 100% transmittance range with a 0 to 1/4" (0 to 6.5mm) thickness range and an accuracy of ±2%. It features a power-on self calibration. Readings are displayed on the 3-Digit, 999 count LCD. Automatic data hold locks the reading on the display for 30 seconds before auto-shutdown begins to conserve battery life. A continuous use function can be used to overide auto-shutdown for longer operating times. Includes Tint Meter receiver and transmitter, (2) standard transmittance sheets with plastic pocket, (2) CR2032 batteries, and carrying case. 1 year warranty.

Features

Measures the transmittance of light in the safety testing of tinted windows and other materials
Measures the transmittance of light in the safety testing of tinted windows and other materials
3-Digit 999 count LCD
0 to 100% transmittance range
0 to 1/4" (0 to 6.5mm) thickness range
Power on self-calibration
Automatic data hold locks the reading on the display for 30 seconds before auto-shutdown
Continuous Use function overides auto-shutdown
Low battery indicator
Auto-shutdown conserves battery life

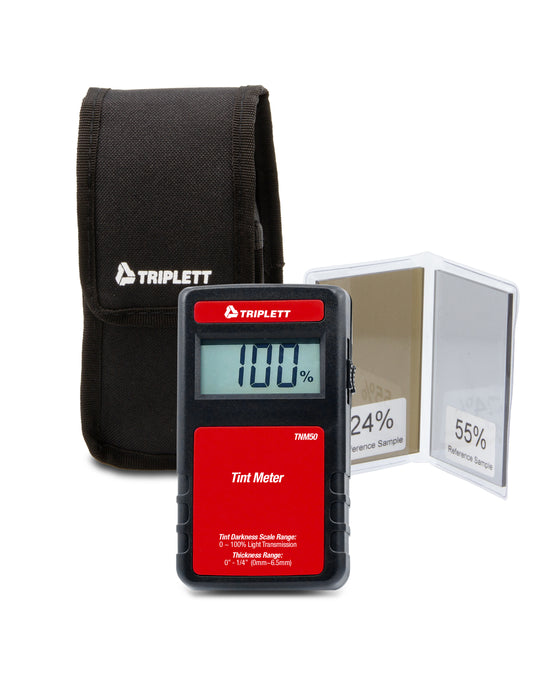

Includes Tint Meter receiver and transmitter, (2) standard transmittance sheets with plastic pocket, (2) CR2032 batteries, and carrying case. 1 year warranty.

Specs

	TNM50
Transmittance Range	0 to 100%
Thickness Range	0" to 1/4" (0mm to 6.5mm)
Accuracy	±2% (calibration light source 2856°K)
Repeatability	±1%
Resolution	1%
Response Time	4 seconds
Power	(2) CR2032 batteries
Dimensions	4.2 x 2.4 x 1.2" (107 x 60 x 30mm)
Weight	4.8oz (135g)

Downloads

Datasheet
User Manual
