Triplett 75 Ohm Male BNC Crimp Crimp Connector 307-18TP

75 Ohm Male BNC Crimp Crimp Connector, 10 Pack - (307-18TP)

10 Pack
by GEM by Triplett
SKU 307-18TP
6 14395 06053 4
$10.99 - $10.99
$10.99
$10.99 - $10.99
$10.99

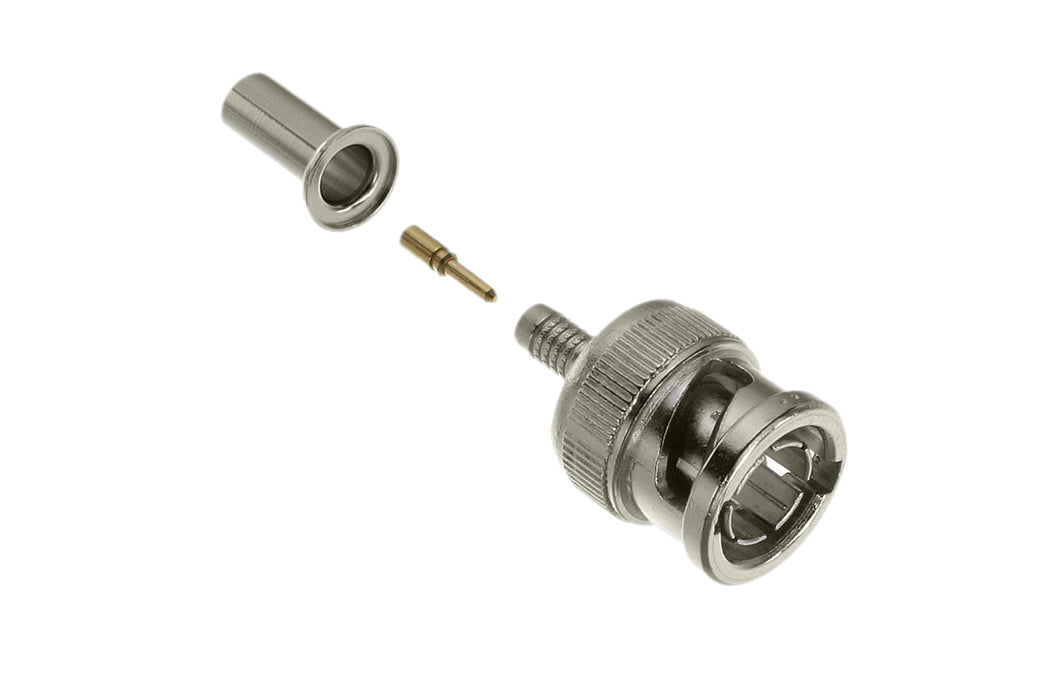

RG8218 and RG735 BNC Male 3 Pc Crimp/Crimp, 75 Ohm;. CCTV, HD-TVI, CVI, AHD and IP Over Coax 10 Pack

CATEGORY: BNC COMPRESSION CONNECTOR


Features
  • Bright nickel finish solid brass or zinc body; utilizes captive, self-energizing gold-plated center contact
  • Belden: 8218, 735A1, 1164A, HC2648, HC2650, 1418B, 1167B; Coleman: 735, 7522; Genesis: 5019, 5020, 5022, 5029, 5099
  • Used for higher frequency applications above 2GHz as the center contact is more closely matched to the center conductor of the cable
  • Crimped center contact provides a lower V.S.W.R. at higher frequencies (use a 75 ohm connector above 1GHz). Also used for cables with a flexible stranded center conductor
  • Use GST-174 Strip Tool; GET-305-12 Crimp Tool
    • Weight 2.2 Ounces
    Width 4.25 Inches
    Length 0.5 Inches
    Height 7.5 Inches
    Downloads
    Datasheet
