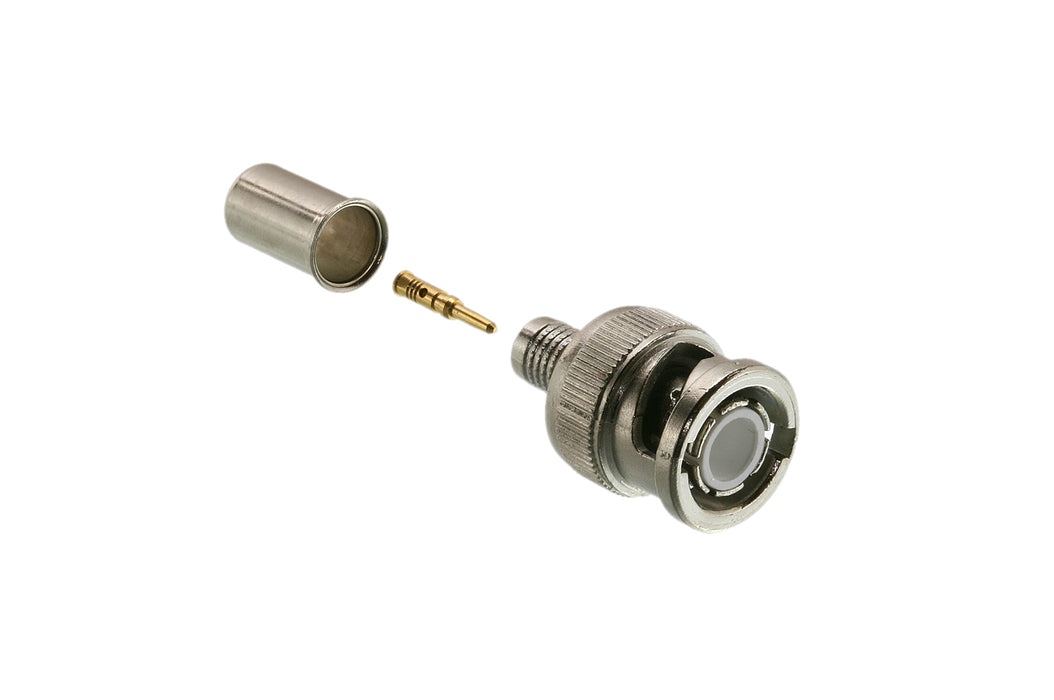

Triplett 50 Ohm Male BNC Crimp Crimp Connector 305-10TP

50 Ohm Male BNC Crimp Crimp Connector, 10 Pack - (305-10TP)

10 Pack
by GEM by Triplett
SKU 305-10TP
814039003273
$10.99 - $10.99
$10.99
$10.99 - $10.99
$10.99

RG59, & RG62 TFE BNC Male 3 Pc Crimp/Crimp, 50 Ohm; CCTV, HD-TVI, CVI, AHD and IP Over Coax 10 Pack

CATEGORY: BNC CRIMP CONNECTOR


Features
  • Bright nickel finish solid brass or zinc body; utilizes captive, self-energizing gold-plated center contact
  • 22 AWG, .185 - .205 Jacket O.D.
  • Used for higher frequency applications up to 1GHz as the center contact is more closely matched to the center conductor of the cable
  • Crimped center contact provides a lower V.S.W.R. at higher frequencies (use a 75 ohm connector above 1GHz). Also used for cables with a flexible stranded center conductor
  • Use GST-4 Strip Tool; GET-305-58596 Crimp Tool
